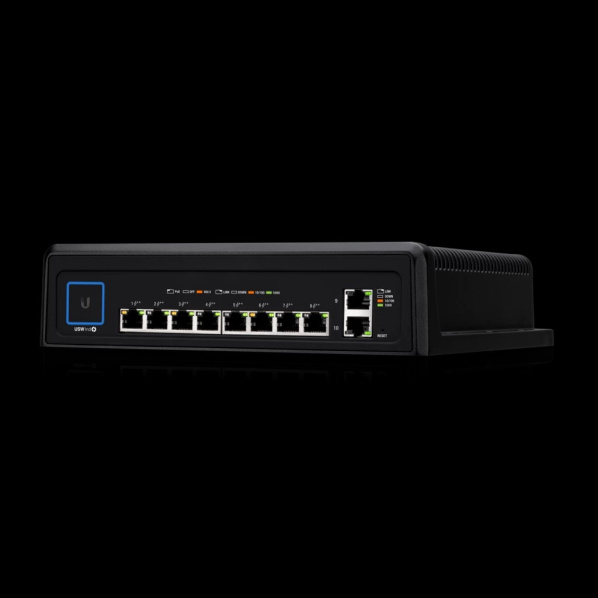

Ubiquiti model USW-Industrial

Technical Specifications

Mechanical
Dimensions  254 x 235 x 60 mm (10 x 9.3 x 2.4")
Weight  3.9 kg (8.5 lb)
Enclosure material  Die-cast aluminum with black powder coated finish


Hardware
Management interface  Ethernet In-Band
Networking interface  (10) GbE RJ45 ports
PoE interface  (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput  10 Gbps
Switching capacity  20 Gbps
Forwarding rate  14.88 Mpps
Power method  Universal input, 100—240V AC, 6A Max., 50/60 Hz
Power supply  AC/DC, internal, 450W
Supported voltage range  100—240V AC
Max. power consumption  20W (Excluding PoE output)
Total available PoE  430W
Max. PoE wattage per port by PSE  PoE++: 60W
Voltage range PoE mode  PoE++: 50—57V
ESD/EMP protection  Air: ± 24kV, contact: ± 24kV
Shock and vibration  ETSI300-019-1.4 Standard
Ambient operating temperature  Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F)
Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Ambient operating humidity  5 to 95% noncondensing
Certifications  FCC, IC


Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC

LEDs
System Status
Ethernet PoE
Speed/link/activity
