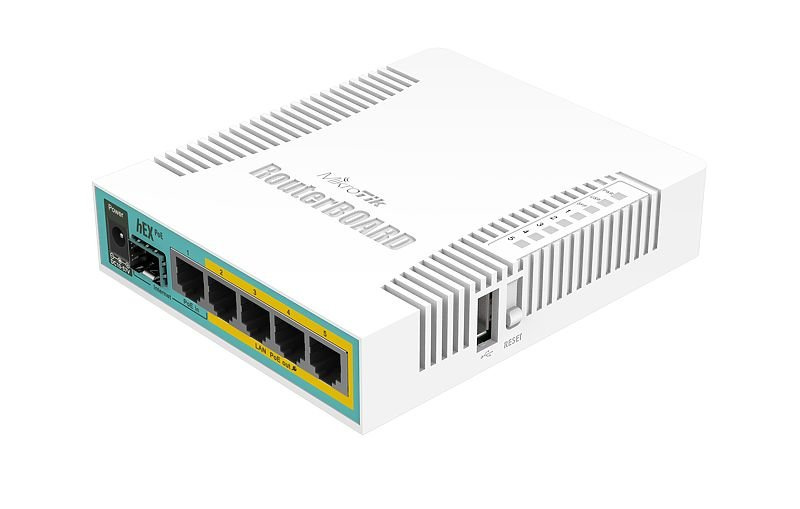

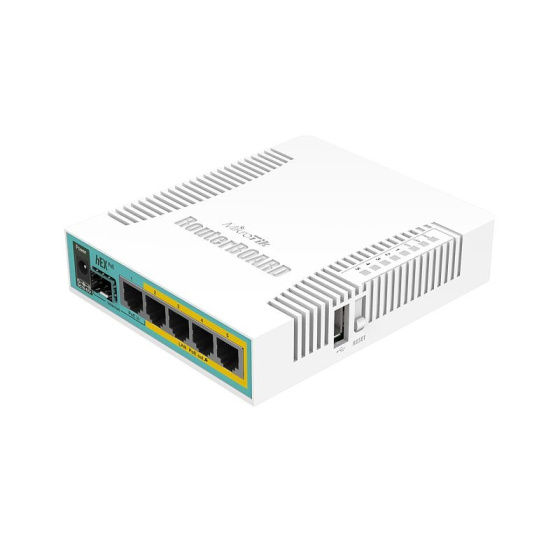

Popis výrobku MIKROTIK RouterBOARD hEX PoE + L4 (800MHz; 128MB RAM, 5xGLAN switch, PoE in/out, zdroj)

tabulka datové propustnosti

Specifications

Details
Product code	RB960PGS
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	800 MHz
License level	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	16 MB
Storage type	FLASH
Tested ambient temperature	-40°C to 60°C

Powering

Details
PoE in	Passive PoE
PoE out	802.3af/at
PoE in input Voltage	12-57 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max out per port output (input > 30 V)	450 mA
Max out per port output (input < 30 V)	1 A
Max total out (A)	2 A
Max power consumption	59 W
Max power consumption without attachments	6 W

Ethernet

Details
10/100/1000 Ethernet ports	5

Fiber

Details
SFP ports	1

Peripherals

Details
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
