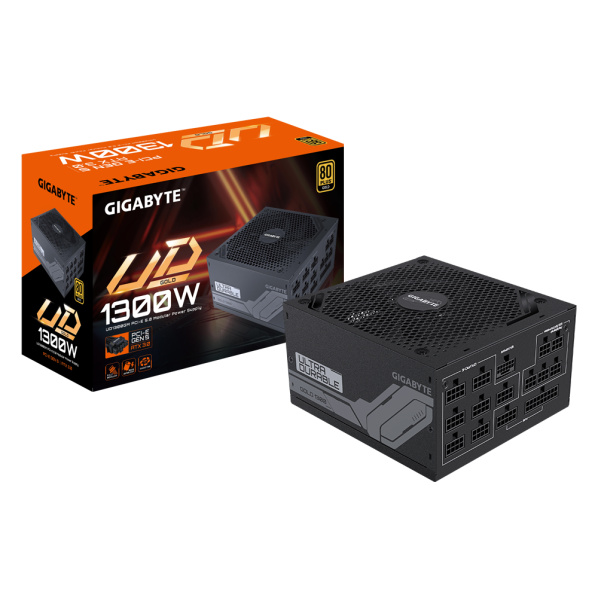

Gigabyte UD1300GM PG5 1300W 80+ Gold Modular PCIe 5

KEY FEATURE Ultra Durable Main Japanese capacitors Enhanced thermal solution 140mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics card Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact size 10 years warranty (Adjusted according to different regions) UD1300GM PG5 Key Features Specification Support News & Awards Gallery Buy Model GP-UD1300GM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1300W Dimension 150 x 160 x 86 mm Fan Type 140mm Hydraulic Bearing(HYB)fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCIe 16 Pin x 1: 700mm*1 PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2 SATA x 12 : 650mm+150mm+150mm+150mm*3 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
