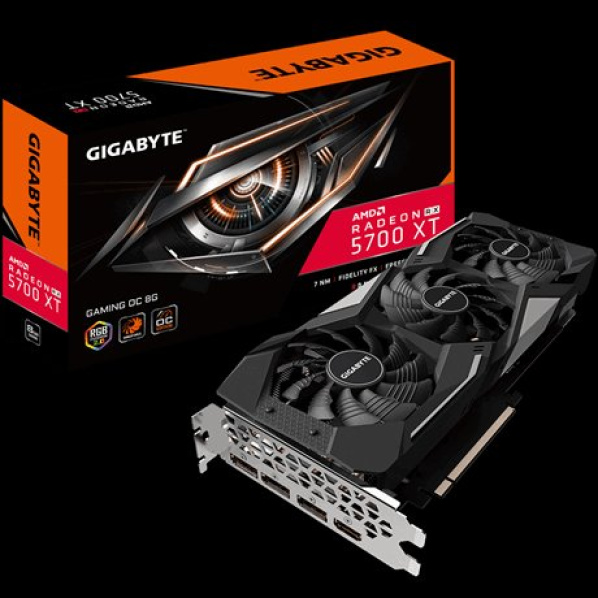

Gigabyte GV-R57XTGAMING OC-8GD, RX 5700 XT, 8GB GDDR6, 256bit, 3xDisplayPort 1.4, 1xHDMI 2.0b

Graphics Processing Radeon™ RX 5700 XT Core Clock Boost Clock : Up to 1905 MHz Game Clock : 1795 MHz (Reference card is 1755 MHz) Base Clock : 1650 MHz (Reference card is 1605 MHz) *Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. Stream Processors 2560 Process Technology 7 nm Memory Clock 14000 MHz Memory Size 8 GB Memory Type GDDR6 Memory Bus 256 bit Memory Bandwidth (GB/sec) 448 GB/s Card Bus PCI-E 4.0 x 16 Digital max resolution 7680x4320@60Hz Multi-view 4 Card size L=279.85 W=114.35 H=49.55 mm PCB Form ATX DirectX 12 OpenGL 4.6 Recommended PSU 600W Power Connectors 8 Pin*1, 6Pin*1 Output DisplayPort 1.4 *3 HDMI 2.0b *1 Accessories Quick Guide
