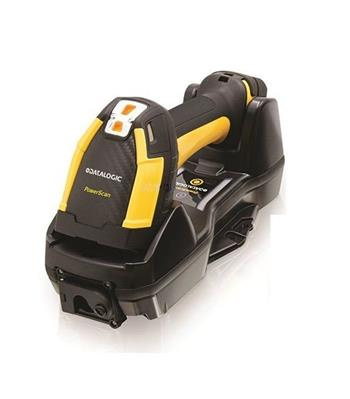

Datalogic PowerScan PM9600-HP HI PERF 433MHZ USB/KIT INCL SCANNER PM9600-HP CRADL

PowerScan PM9600-HP, High Performance, 433MHz, USB Kit (Kit includes Scanner PM9600-HP, cradle BC9630-433, Cable CAB-552 , Power Supply 8-0935 and Power Cord 6003-0940) Produkt je dodávaný bez slovenského návodu. TECHNICAL SPECIFICATIONS Datalogic STAR Cordless System™ Radio Frequency: 433 MHz; 910 MHz; Effective Radiated Power: 433 MHz: < 10 mW; 910 MHz: < 50 mW; Point-to-Point/Multi-Point Configuration; Max. Readers per Radio Receiver: 16; Two Way Communications. Radio Range (Open Air): 433 MHz: 150 m / 492 ft low speed; 100 m / 328 ft high speed 910 MHz: 230 m / 754 ft low speed; Frequency hopping; 180 m / 590 ft high speed DECODING CAPABILITY 1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code Postal Codes Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites Digital Watermarking Digimarc Barcodes (HP and DC models) ELECTRICAL Battery Battery Type: Lithium-Ion: 3350 mAh Charge time @ 12 VDC: 2.5 hours to charge up to 95%, 3.2 hours to charge 100%, External Power. Reads per charge: 80,000 Current Charging (Typical) < 15 W Scanner only: 480 mA @ 3.7 V (Operative) Cradle only: 150 mA @ 5 V (Operative) Input Voltage Host powered: 5V DC ± 5% or 10 - 30 VDC External power supply: 10 - 30 VDC ± 5% ENVIRONMENTAL Ambient Light 0 - 100,000 lux Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F; Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F Trigger Resistance Withstands 10 million hits ESD Protection (Air Discharge) 20 kV Humidity (Non-Condensing) 0 - 95% Particulate and Water Sealing IP67 and IP65; Cradle IP65 (specific models) Temperature Operating: -20 to 50 °C / -4 to 122 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F Charging: 0 to 40 °C / 32 to 104 °F nominal; 0 to 35 °C / 32 to 95 °F ideal INTERFACES Interfaces RS-232 / USB / Keyboard Wedge Multi-Interface / Ethernet and Industrial Protocols PHYSICAL CHARACTERISTICS Colors Available Yellow/Black Dimensions H x L x W 19.8 x 14.0 x 7.9 cm / 7.8 x 5.5 x 3.1 in Display PM9600-D/DK. 1.8’’ OLED graphic display; Font Dimensions: User selectable. Keypad PM9600-D: 4 Keys, PM9600-DK: 16 Keys; Configurable Weight PM9600-XX: 425 g / 15.0 oz PM9600-DXX: 445 g / 15.7 oz PM9600-DKXX: 455 g / 16.0 oz READING PERFORMANCE Imager Sensor 1280 x 800 pixels Light Source Aiming: 630 - 680 nm VLD Illumination: White LED reading light Print Contrast Ratio (Minimum) 15% Reading Angle Pitch: +/- 52°; Roll (Tilt): 360°; Skew (Yaw): +/- 52° Field Of View SR and HP: 38° H, 24° V Reading Indicators Beeper (Adjustable Tone and Volume); Datalogic’s 3GL™ (Three Green Lights) technology for good-read feedback; Datalogic ‘Green Spot’ on the Code; Dual Good Read LEDs; Vibration. Resolution (Maximum) SR: 1D Codes: 3 mil; 2D Codes: 6 mil HP: 1D Codes: 2.5 mil; 2D Codes: 4 mil READING RANGES Typical Depth of Field Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. SR Models HP Models Code 128 Code 128 5 mils: 6.4 to 30.9 cm / 2.5 to 12.2 in 2.5 mils: 6.3 to 11.5 cm / 2.5 to 4.5 in 20 mils: 4 to 103.7 cm / 1.6 to 40.8 in 5 mils: 3.8 to 41 cm / 1.5 to 16.1 in 40 mils: 5.5 to 175 cm / 2.2 to 68.9 in 40 mils: 5.5 to 242.9 cm / 2.1 to 95.6 in EAN/UPC 13 mils: 4 to 67.5 cm / 1.5 to 26.5 in EAN/UPC 13 mils: 4 to 120 cm / 1.5 to 40.2 in DataMatrix 10 mils: 6 to 30 cm / 2.5 to 11.8 in PDF417 10 mils: 0.5 to 46.1 cm / 0.2 to 18.1 in DataMatrix 10 mils: 4.2 to 32 cm /1.6 to 12.6 in SAFETY & REGULATORY Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Regulatory Addendum for this product can be referred to for a complete list of certifications. Environmental Compliance Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H. Laser Classification Caution Laser Radiation - Do not stare into beam CDRH Class II; IEC 60825 Class 2 LED Classification IEC 62471 LED Class: Exempt UTILITIES Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge. OPOS / JavaPOS OPOS and JavaPOS Utilities are available for download at no charge. WARRANTY Warranty 3-Year Factory Warranty
