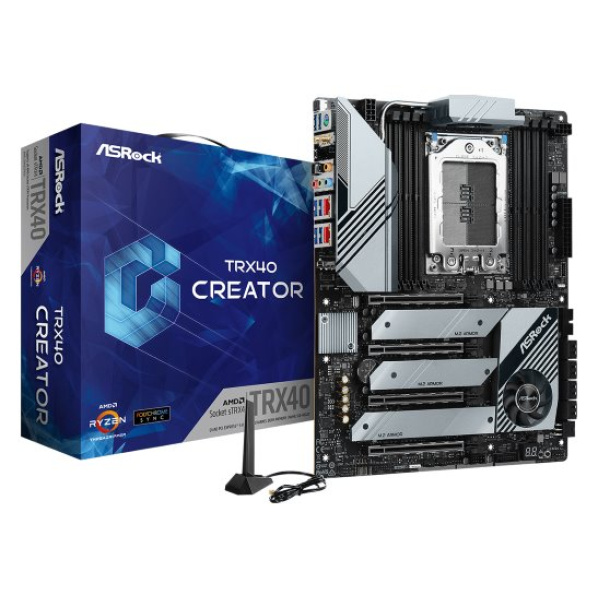

Asrock TRX40 CREATOR, AMD TR4, 8xDDR4, bez VGA, M.2, LAN, ATX

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
8 Power Phase Design, 90A Dr. MOS & Power Choke
XXL Aluminum Alloy Heatsink & Heatpipe Design
Supports DDR4 4666+(OC)
4 PCIe 4.0 x16
NVIDIA® NVLINK™, 4-Way SLI™, AMD 4-Way CrossFireX™
8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
1 Rear USB 3.2 Gen2 x2 20Gb/s Type-C
3 USB 3.2 Gen2 (1 Front Type-C, 2 Rear)
8 USB 3.2 Gen1 (4 Front, 4 Rear)
7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Supports Purity Sound™ 4 & DTS Connect
AQUANTIA® 10G LAN, Realtek 2.5G LAN
Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0

Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
- ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 90A Power Choke
- 90A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 8 Layer PCB
- 2oz Copper PCB
Server-Grade Low-Loss PCB
2.5G LAN
AQUANTIA® 10G LAN
Intel® 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Supports AMD Socket sTRX4
- Intersil Digital PWM
- 8 Power Phase design
- Supports ASRock Hyper BCLK Engine II
Chipset
- AMD TRX40
Memory
- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM)
- Max. capacity of system memory: 256GB
- 15µ Gold Contact in DIMM Slots
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics
- n/a
Audio
- 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15µ Gold Audio Connector
- Supports DTS Connect
LAN
1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA® AQC107):
- Supports Lightning/ESD Protection
- Supports PXE
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG):
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN
- Intel® 802.11ax WiFi Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band (2.4/5 GHz)
- Supports WiFi6 802.11ax (2.4Gbps)
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO
Slots
- 4 x PCI Express 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x8 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE3) / x8 (PCIE4))*
- Supports AMD 4-Way CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® 4-Way SLI™, 3-Way SLI™ and SLI™
- Support NVIDIA® SLI™ with NVIDIA® Quadro graphics cards
- Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
- 15µ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE3)

*Supports NVMe SSD as boot disks

**NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.
Storage
- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 2 x Hyper M.2 Sockets (M2_1 and M2_2), support M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
- 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)

*Supports NVMe SSD as boot disks
Connector
- 1 x TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)******
- 1 x Right Angle Front Panel Audio Connector******
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
- 1 x Dr. Debug with LED
- 1 x Power Button
- 1 x Reset Button
- 1 x CPU Xtreme OC Switch

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W)
