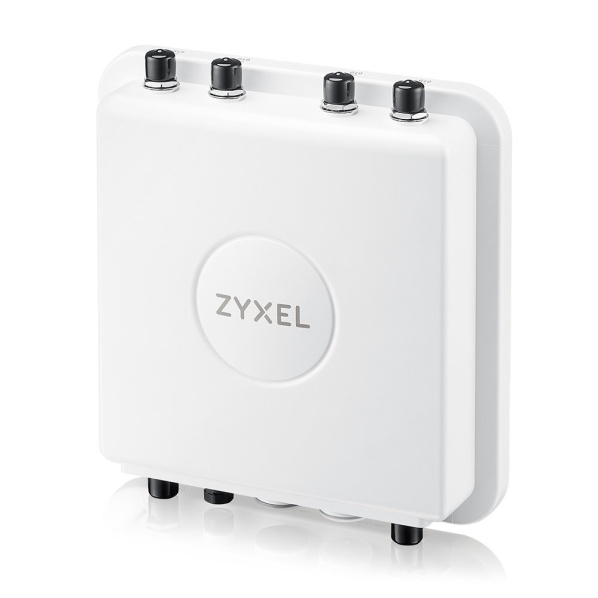

Popis Zyxel WAX655E, 802.11ax 4x4 Outdoor Access Point external Antennas (not included), Single Pack exclude Power Adaptor, 1 year Neb
Wireless Standard IEEE 802.11 ax/ac/n/g/b/a MIMO MU-MIMO Wireless speed 2.4 GHz: 575 Mbps 5 GHz: 4800 Mbps Frequency band 2.4 GHz: USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz 5 GHz: USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Bandwidth 20-, 40-, 80- and 160-MHz Conducted typical transmit output power*1 US (2.4 GHz/5 GHz): 24/28 dBm EU (2.4 GHz/5 GHz): 18/25 dBm RF Design Antenna type 4x4 + 2x2, 6 N-type connectors*2 Minimum receive sensitivity Min. Rx sensitivity up to -101 dBm WLAN Feature Band steering Yes WDS/Mesh*3 Yes Fast roaming Pre-authentication, PMK caching and 802.11r/k/v DCS Yes Load balancing Yes Advanced cellular coexistence Yes Security Encryption WEP WPA WPA2-PSK WPA3 Authentication WPA WPA2 WPA3-Enterprise EAP IEEE 802.1X RADIUS authentication Access management L2-isolation MAC filtering Rogue AP detection Networking IPv6 Yes VLANs Yes (Doesn’t support traffic shaping in NCC) WMM Yes U-APSD Yes Management Operating mode Nebula cloud managed Controller-managed Standalone ZON Utility Discovery of Zyxel switches, APs and gateways Centralized and batch configurations: IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration Web UI/CLI Yes SNMP Yes Physical Specifications Item Dimensions (WxDxH)(mm/in.) 256 x 257 x 70/10.07 x 10.11 x 2.75 Weight (g/lb.) 1,365/3.00 Packing Dimensions (WxDxH)(mm/in.) 427 x 284 x 111/16.81 x 11.18 x 4.37 Weight (g/lb.) 2,925/6.44 Included accessories Pole/Wall mounting kits MTBF (hr) 992,516 Physical Interfaces Ethernet port 1 x 1/2.5 Gbps LAN Power PoE (802.3)at: power draw 25.5W PoE modes IEEE 802.3af: No Wireless IEEE 802.3at: Unrestricted IEEE 802.3bt: Unrestricted Environmental Specifications Operating Temperature -40°C to 65°C/-40°F to 149°F Humidity 10% to 90% (non-condensing) Storage Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing) Weather protection IP67 Certifications Radio FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893, LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1
