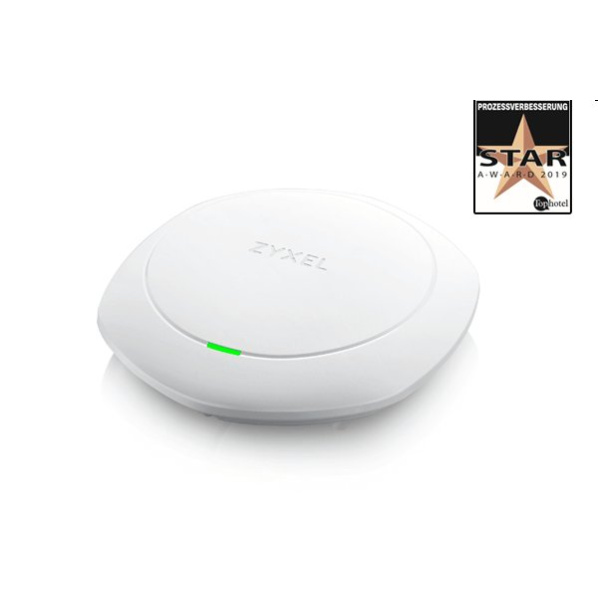

Zyxel WAC6303D-S 802.11ac 3x3 Wave2 Smart Antenna AP with BLE Beacon (no PSU) Include NebulaFlex Pro Triple Mode Support

Prístupový bod WAC6303D-S je vybavený inteligentnou anténou, ktorá klientom aj v miestach s vysokou prevádzkou prináša špičkové bezdrôtové služby. WAC6303D-S navyše podporuje riešenie NebulaFlexTM Pro, ktoré zahŕňa trojročnú licenciu Professional Pack a umožňuje tri prevádzkové režimy (samostatný, riadený kontrolérom a riadený pomocou cloudu Nebula). RF Specifications 802.11n/ac premium features 2.4GHz: 2x2 MIMO with two spatial stream (SU-MIMO) 5GHz: 3x3 MIMO with three spatial stream (SU-, or MU-MIMO) 802.11ac beamforming (transmit beamforming) Maximal ratio combining (MRC) Low End Sensitivity Improvements (LESI) Time Domain Channel Smoothing 20-, 40- and 80-MHz channels PHY data rates total up to 300 Mbps (11n) + 1300 Mbps (11ac) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay diversity (CSD) support Maximum Likelihood Demodulation (MLD) support Low Density Parity Check (LDPC) support Typical transmit output power (dBm) *1 US (FCC) 2.4 GHz: 25 dBm US (FCC) 5 G GHz: 28 dBm EU (ETSI) 2.4 GHz: 20 dBm EU (ETSI) 5 G GHz: 26 dBm Antenna gain 2.4 GHz: 3 dBi; 2x2 MIMO 5 GHz: 4 dBi 3x3 MIMO Support data rate 802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40MHz; 2 Spatial Streams; GI=400ns) 802.11ac:up to 1300 Mbps in MCS9 (80MHz; 3 Spatial Streams; GI=400ns) Receive sensitivity Min. Rx sensitivity up to -103 dBm Interfaces Number of 10/100/1000M LAN 2 x switch ports Console port 4-Pin serial Input power requirements Direct DC power or Power over Ethernet (PoE)*2 PoE 802.3at (full mode) 802.3af (Restrict 2.4G & 5G radio to one transmit stream only.) PoE power draw 16.2W (802.3at PoE) WLAN WLAN maximum throughput Up to 1600 Mbps Fast roaming Pre-authentication and PMK caching Wireless Security WPA/WPA2-PSK WPA/WPA2-Enterprise WLAN access control list EAP type IEEE 802.1X MAC filtering Web authentication *3 Layer-2 isolation RADIUS authentication Microsoft AD authentication*3 LDAP authentication *3 MAC authentication *3 Rogue AP detection Number of SSID 16 QoS WMM WMM power save U-APSD DiffServ marking Network IPv6 support Yes VLANs Yes DHCP client Yes Management ZON Utility*4 Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC) Smart Connect Neighbor device discovery One-click remote management access to the neighboring Zyxel devices Zyxel AP Configurator*5 Batch AP configuration Batch AP firmware upgrade Batch AP profile backup Zyxel Wireless Optimizer *6 Wi-Fi AP planning Wi-Fi coverage detection Wireless health management Standalone AP mode Yes Managed AP mode Yes CLI Yes SNMP v2c/v3 Standard Compliance Ethernet IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3af/at PoE IEEE 802.3af/at WLAN 802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM Certifications Radio FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EN 60601-1-2 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55032 EN55024 EN61000-3-2/-3 BSMI CNS13438 Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 Physical Specifications and others Item Dimensions (WxDxH)(mm/in.) 211 x 223 x 39 / 8.31 x 8.78 x 1.54 Weight (kg/lb.) 800/1.76 Packing Dimensions (WxDxH)(mm/in.) 251 x 247 x 55 / 9.88 x 9.72 x 2.17 Weight (kg/lb.) 1040/ 2.29 Included accessories Wall/ceiling mount plate Plenum rating Yes Kensington lock support Yes Power supply Input: AC 100-240V, 50~60Hz Output: DC +12V 2A (Sold separately) MTBF (hr) 3,960,217 Environmental Specifications Operating Temperature -20°C to 60°C / -4°F to 140°F Humidity 10% to 90% (Non-condensing) Storage Temperature -40°C to 70°C / -40°F to 158°F Humidity 10% to 90%
