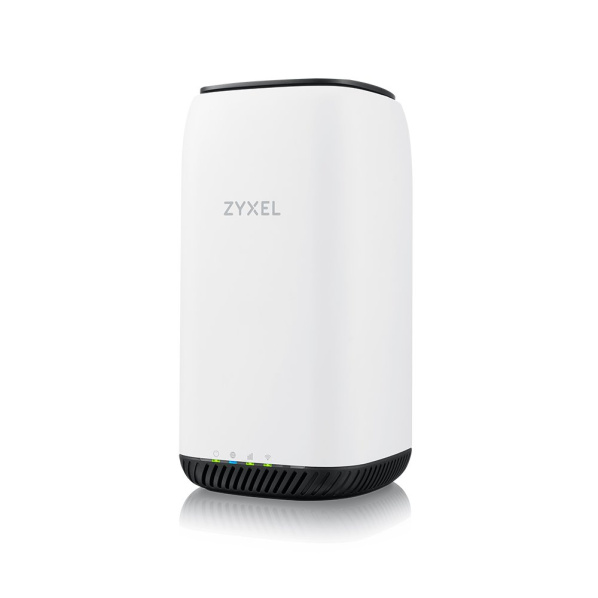

Zyxel NR5101, 5G Indoor IAD, NebulaFlex, with 1 year Pro Pack, EU and UK Region

Hardware Specifications 5G NR interface 3GPP Release 15 standard-compliant Supports both NSA and SA modes Supports frequencies: n1/n3/n5/n7/n8/n20/n28/n41/n77/n78/n38/n40 DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78 Data rates: 5G SA: DL 4.2 Gbps; UL 900 Mbps* 5G NSA: DL 5 Gbps; UL 650 Mbps* Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Output power: Class 2 (26 dBm) for 5G NR n41/n77/n78 Class 3 (23 dBm) for 5G NR n1/n3/n5/n7/n8/n20/n28/n38/n40 4G LTE interface 3GPP UE Category 20 standard-compliant Supports frequencies: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B38/B39 LTE-TDD: B40/B41/B42 DL 4×4 MIMO: LTE-FDD: B1/B3/B7 LTE-TDD: B38/B40/B41/B42 Peak data rates: Max. DL 2 Gbps/UL 200 Mbps* 4 internal antennas Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Output power: Class 2 (26 dBm) for LTE B38/B40/B41/B42 Class 3 (23 dBm) for FDD/TDD LTE bands UMTS/EDGE/GPRS/GSM Air interface Standard-compliant: DC-HSDPA/HSPA+ compliant DC-HSDPA/HSPA+ standards-compliant Supports frequencies: B1/3/5/8 Peak data rates: DC-HSPA+ downlink data rates up to 42 Mbps* HSUPA uplink data rates up to 5.76 Mbps* UMTS data rates up to 384 Kbps* WiFi Air Interface Wireless standard: IEEE 802.11 b/g/n/a/ac/ax Wireless speeds: Link rates up to 573 Mbps* for 2.4 GHz Link rates up to 1.2 Gbps* for 5 GHz Internal WiFi antenna: Dual-band & concurrent 2x2 + 2x2 WiFi antenna gain: ~3 dBi for 2.4 GHz ~5 dBi for 5 GHz 5G/4G/3G antennas 2 SMA connectors for external antennas 6 embedded omni-directional antennas Ultra-high band: Up to 4 dBi peak gain High band and middle band: Up to 4 dBi peak gain Low band: Up to 2 dBi peak gain Hardware interface Two 10/100/1000 Mbps Ethernet RJ-45 LAN ports, LAN1 can be configured for Ethernet WAN port LEDs: Power indication LTE connection status LTE signal status WiFi connection status USB host status LAN status Two external antenna connectors (SMA type) One 3FF/Micro SIM card slot One power on/off button One WPS/WiFi on/off button One LED on/off button One reset button One USB 2.0 host port for file sharing
