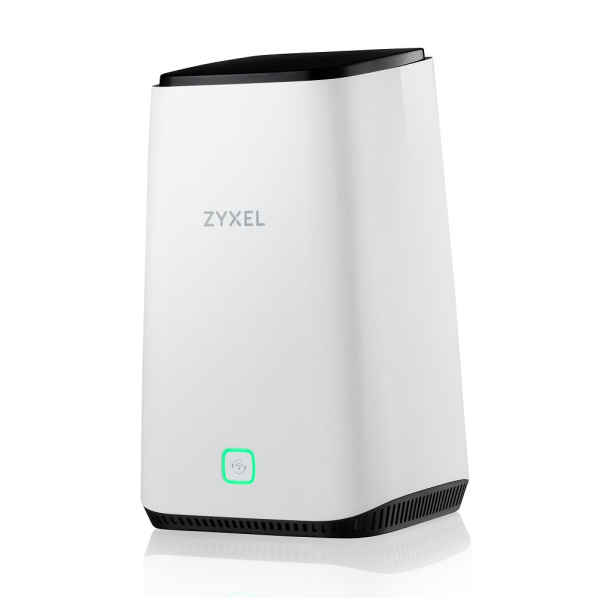

Zyxel FWA510, 5G NR Indoor Router, Standalone/Nebula with 1 year Nebula Pro License,AX3600 WiFi, 2.5GB LAN, EU and UK region

System specifications IP networking Supports IPv4/IPv6 dual stack (NDP IPv6) DHCP server Virtual Private Network (VPN) pass-through Supports NAT/NAPT Supports DMZ Multiple APNs Supports port forwarding Routing Supports bridge and router modes Supports remote management under bridge mode Static/dynamic routing settings for RIP v1/v2 IP firewall DoS attack detection Supports SPI (Stateful Packet Inspection) Application-level firewall (LAN to WAN such as HTTP, Telnet, Ping) Filters LAN MAC address Filters LAN IP address Management Supports local/remote device management and firmware upgrade via Nebula Cloud and web GUI SMS management PIN/PUK manage ment APN management Operating frequency band selection Supports Zyxel Air app (iOS and Android) for easy installation and local management only WLAN feature Auto channel selection WiFi Protected Setup (WPS) WiFi Multimedia (WMM) WiFi-enabled devices: up to 64 Security: none, WPA2-Personal, WPA+WPA2, WPA2+WPA3, WPA3 MAC address filtering with 64 address supported Multiple SSIDs/hide SSIDs WLAN scheduling Hardware Specifications 5G NR interface 3GPP Release 15 standard-compliant Supports both NSA and SA modes Supports Sub-6 NR DL 2xCA (TDD/FDD) Supports frequencies: FDD: n1, n3, n5, n7, n8, n20, n28 TDD: n38, n40, n41, n77, n78 Supports DL 4×4 MIMO: FDD: n1, n3, n5, n7 TDD: n38, n40, n41, n77, n78 Data rates: 5G SA: DL 4.67 Gbps*; UL: 2.5 Gbps* 5G NSA: DL 3.74 Gbps*; UL: 1.46 Gbps* Output power: Class 2 (26 dBm) for 5G NR n41/n78 Class 3 (23 dBm) for all 5G NR bands 4G LTE interface 3GPP UE Category 19 standard-compliant Supports frequencies: LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41/B42 Supports DL 4×4 MIMO: LTE-FDD: B1/B3/B7 LTE-TDD: B38/B40/B41/B42 Peak data rates: Max. DL 1.6 Gbps/UL 200 Mbps** Supports DL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Supports UL modulation QPSK, 16-QAM, 64-QAM and 256-QAM Output power: Class 2 (26 dBm) for LTE B41 Class 3 (23 dBm) for FDD/TDD LTE bands WiFi air interface Wireless standard: IEEE 802.11 b/g/n/a/ac/ax Wireless speeds: Link rates up to 1.2 Gbps** for 2.4 GHz Link rates up to 2.4 Gbps** for 5 GHz WiFi antenna gain: ~3 dBi for 2.4 GHz ~5 dBi for 5 GHz 5G NR/4G LTE antennas Four TS9 connectors for external antennas*** Four embedded omni-directional antennas Ultra-high band: Up to 5 dBi peak gain High band and middle band: Up to 5 dBi peak gain Low band: Up to 4 dBi peak gain Hardware interface Two 100/1000/2500 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port LED indicators: Power indication SMS status Signal strength Internet connection status Radio access technology status WiFi AP status WPS status Four external antenna connectors (TS9 type)*** One 3FF/Micro SIM card slot One power on/off button One WPS/WiFi on/off button One reset button One Int/Ext antenna switch One USB 3.0 host port for file sharing Power consumption 48 W (peak) Physical Specifications Item dimensions (WxDxH): 132.5 x 134 x 230 mm (5.22” x 5.28” x 9.06”) weight: 1,006 g (2.22 lb.) Packing dimensions (WxDxH): 250 x 200 x 140 mm (9.84” x 7.87” x 5.51”) weight: 1,504 g (3.32 lb.) Environmental Specifications Operating Environment Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (non-condensing) Storage Environment Storage Environment Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 5% to 95% (non-condensing)
