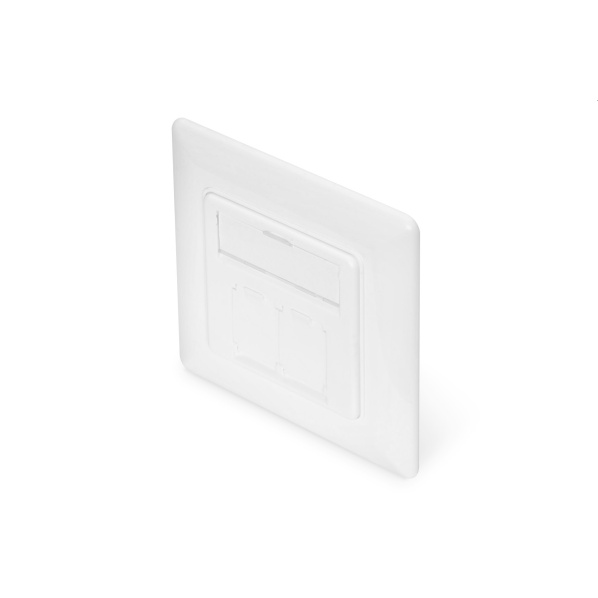

Wallplate for Keystone Jacks, German Type 80x80 frame, 50x50 central plate, design comp.

KOMPATIBILNÍ POUZE S KEYSTONE DIGITUS! Wallplate for Keystone Jacks, German Type 80x80 frame, 50x50 central plate, design comp. DESCRIPTION The DIGITUS® Face plate is suitable for the connection of the shielded DIGITUS® Keystone Modules. Included dust protection shutters provide a perfect protection. The connection way of the module is 45° vertical. The face okate is fully design compatible to common swith programmes with spacer ring. TECHNICAL DETAILS Layout keystone entry: 45° outlet Area of application: Cavity socket, trunking, surface mount box Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C General properties: Suitable for installation in trunking, flush and surface mount Central ground connection Integrated dust cover Plastic label field Design compatible with spacer ring to current switch ranges of switch manufacturers Technical properties: Wall outlet material: Die-cast metal Central plate material: ABS UL 94V-0 Frame material: ABS UL 94V-0 Surface mount box material: ABS UL 94V-0 Physical properties: Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Can be used as 1-Port and 2-Port wall outlet Colour: White RAL9003
