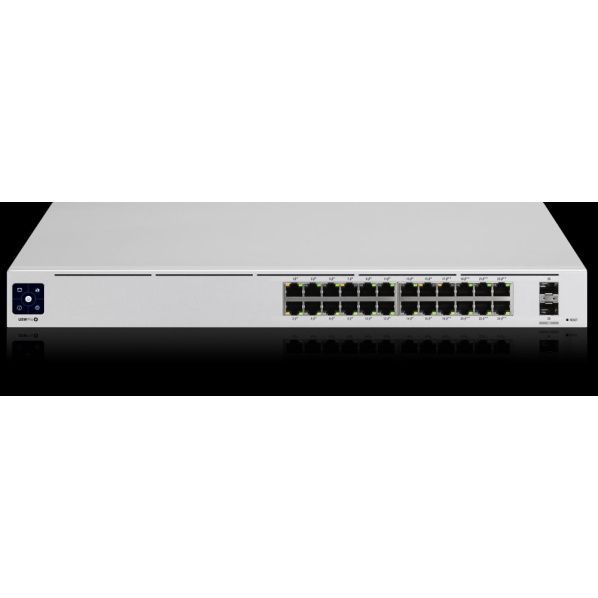

Ubiquiti model USW-PRO-24-POE

Technical Specifications


Mechanical
Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight Without mounting brackets: 4.3 kg (9.5 lb)
With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material SGCC steel


Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 44 Gbps
Switching capacity 88 Gbps
Forwarding rate 65.472 Mpps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE  PoE+: 32W
PoE++: 64W
Voltage range PoE mode  PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display  (1) 1.3" touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC


Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs


LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status


Application Requirements
UniFi Network  Version 5.10.5 and later
