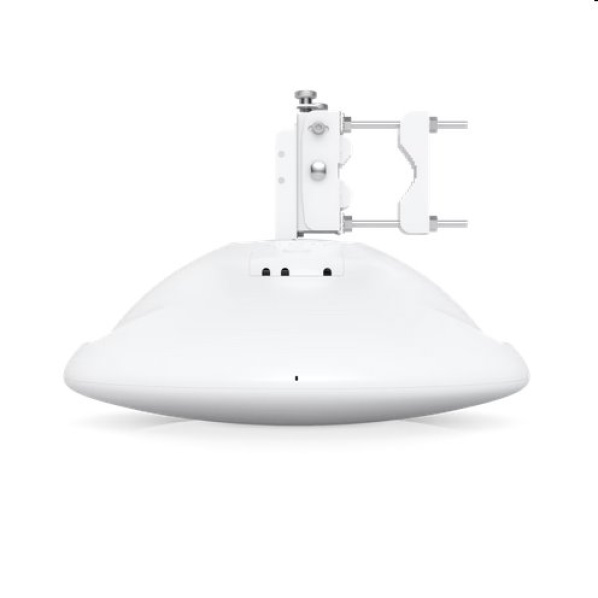

Ubiquiti model WAVE-PRO

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

• Max. link range:
  • — PtP: Up to 15 km
  • — PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
• Max. total throughput: 5.4 Gbps (2.7 Gbps duplex)
• 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
• (2) 2.5 GbE and (1) 10G SFP+ ports
• Ergonomic transportation handle
• Precision alignment mount
• Integrated GPS & Bluetooth

Mechanical
Dimensions O424.4 x 166.2 mm (O16.7 x 6.5")
Weight Without mount: 2.8 kg (6.2 lb)
With mount: 4 kg (8.8 lb)
Enclosure material Aluminum alloy, UV stabilized plastic
Mount material Stainless steel
Pole mount diameter 25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading 369 N at 200 km/h (83 lbf at 125 mph)
Weatherproofing IPX6


Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory DDR3L 512 MB
Networking interface (2) 2.5 GbE RJ45 ports
(1) 10G SFP+ port
Max. power consumption 26W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
Button Factory reset
LEDs Power, (2) Ethernet, SFP+ , GPS, link
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE


Software
Operating mode PtP, PtMP station
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping**
*FW version 3.3.0 and later.
**FW version 3.4.0 and later.
Network Bridge/Router* mode
*Router is available in PtMP station mode only.
Application requirements UISP: Version 2.3.0 and later


System
Total throughput 5.4 Gbps (2.7 Gbps duplex)
Max. range PtP: Up to 15 km
PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption WPA2-PSK (AES)


RF
Operating frequency* 57 to 71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 46 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1.3°
Elevation: 3 dB 1.3°


Back-Up RF
WiFi Standard 802.11ax (WiFi 6)
Operating frequency*
US/CA
Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Max. conducted TX power 27 dBm
Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain 22 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 8°
Elevation: 3 dB 8°
Cross-pol isolation 20 dB


LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet (2) Flashing blue: Ethernet traffic detected
SFP+ (1) Flashing blue: SFP+ traffic detected
Links White: 5 GHz link
Blue: 60 GHz link
GPS Blue: receiving at least (4) GPS satellite signal
