Ubiquiti model USW-PRO-MAX-24-POE

Technical Specifications


Mechanical

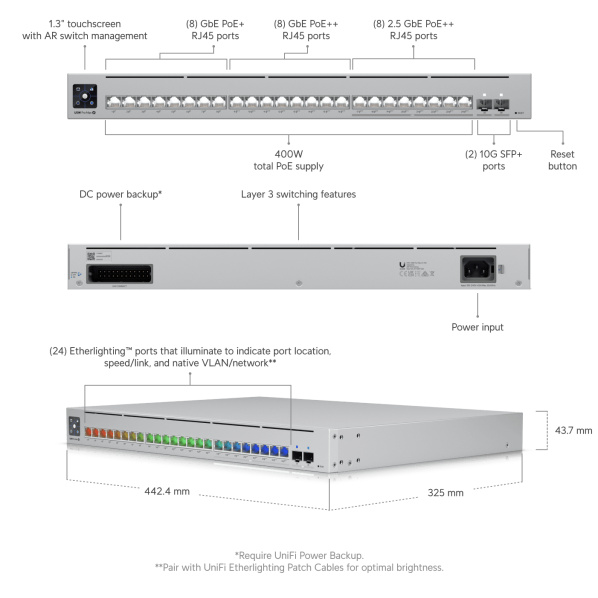

Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material SGCC steel

Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps
Power method (1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 50W (Excluding PoE output)
Total available PoE 400W
Max. PoE wattage per port by PSE  PoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode  PoE: 44—57V
PoE+: 50—57V
LCM display  (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC


Switching Features
Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet  Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network


LEDs
System Status
RPS Status


Application Requirements
UniFi Network  Version 8.0.24 and later
