Ubiquiti model USW-PRO-HD-24-POE

řada profesionálních switchů Layer 3 Etherlighting™ s porty (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, a (4) 10G SFP+ ports.

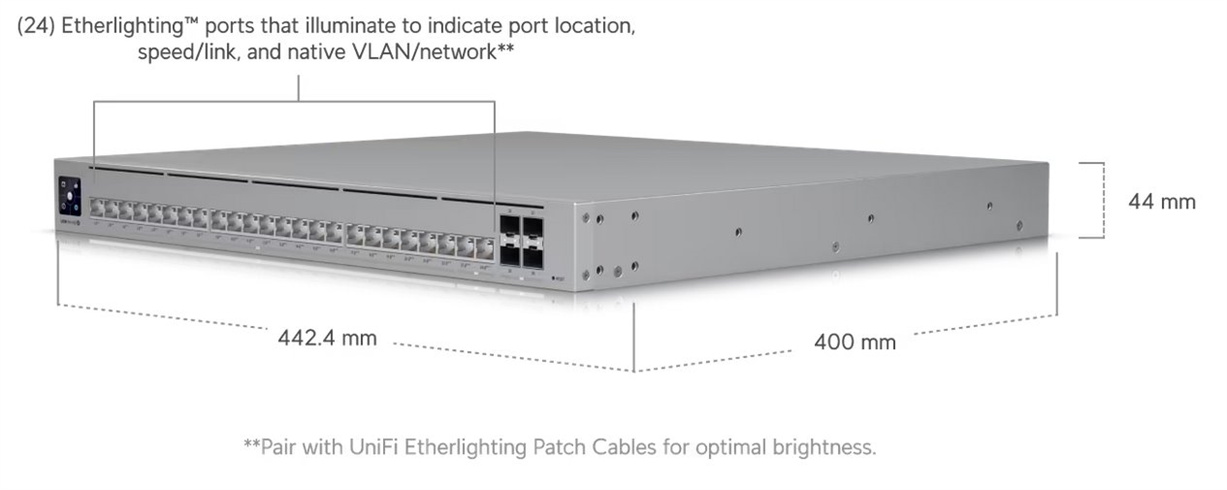

Etherlighting™ ports  - technologie která se osvětlením označuje umístění portů, rychlost/link a nativní VLAN/síť

(22) 2.5 GbE, (2) 10 GbE PoE++ ports
(4) 10G SFP+ ports
DC power backup ready**
600W total PoE availability

Technical Specifications
Overview

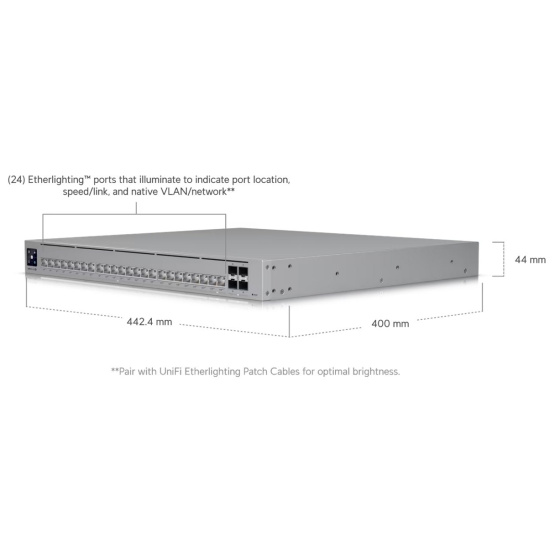

Dimensions   442 x 400 x 44 mm
Port Layout
2.5 GbE RJ45   22 (All PoE++)   (2.5G/1G/100M/10M)
10 GbE RJ45   2 (All PoE++)   (10G/5G/2.5G/1G/100M)
10G SFP+   4   (10G/1G)
Max. PoE Output  Up to PoE++
Total PoE Availability   600W
Redundancy   DC Power Backup
Layer 3   Yes
Form Factor  Rack mount (1U)
Etherlighting™   Yes

Performance
Switching Capacity   230 Gbps
Total Non-Blocking Throughput    115 Gbps
Forwarding Rate   171 Mpps
Supported VLANs   1,000
MAC Address Table Size   32,000

L3 Table Size
ARP Entries  12,000
IPv4 Routes   12,000
Packet Buffer Size   2 MB

Layer 3 Features
DHCP Server (Local Networks)  Yes
DHCP Relay   Yes
Inter-VLAN Routing (Local Networks)   Yes
Static Routing (Local Networks)   Yes

Layer 2 Features
LACP Port Aggregation   Yes
STP & RSTP   Yes
QoS (DSCP)   Yes
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)   Yes
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)   Yes
IGMP Snooping   Yes
802.1X Control   Yes
MAC-Based ACLs & Device Isolation   Yes
DHCP Snooping & Guarding   Yes
Egress Rate Limit   Yes
Flow Control   Yes
Storm Control   Yes
Multicast & Broadcast Rate Limiting   Yes
MAC Address Blocking   Yes
IP-Based ACLs & Network Isolation   Yes
MAC-Based Port Restriction   Yes
Port Isolation   Yes
Port Mirroring   Yes
Jumbo Frames   Yes
LLDP-MED   Yes
Voice VLAN   Yes
Loop Protection   Yes

Hardware
PoE Ports  PoE++   24
Max. PoE Wattage per Port by PSE
PoE   15.4W
PoE+   30W
PoE++   64W
Max. Power Consumption   60W (Excluding PoE Output)   660W (Including PoE Output)
Power Method  (1) Universal input, 100—240V AC, 50/60 Hz   (1) USP RPS DC input
Power Input Method  AC input
Power Supply   AC/DC, internal, 660W
Supported Voltage Range   100—240V AC
Management    Ethernet   AR
Weight   Without mounting brackets: 6.2 kg (13.7 lb)   With mounting brackets: 6.3 kg (13.9 lb)
Enclosure Material   SGCC steel
Mount Material   SGCC steel
Supported Rack Depth  600 - 1,200 mm
LCM Display   1.3" touchscreen
Ambient Operating Temperature   -5 to 40° C (23 to 104° F)
Ambient Operating Humidity   10 to 90% noncondensing
Etherlighting™   Ethernet   Yes   SFP+   Yes
NDAA Compliant   Yes
Certifications   CE, FCC, IC
Software
Application Requirements   UniFi Network    Version 9.0.114 and later
