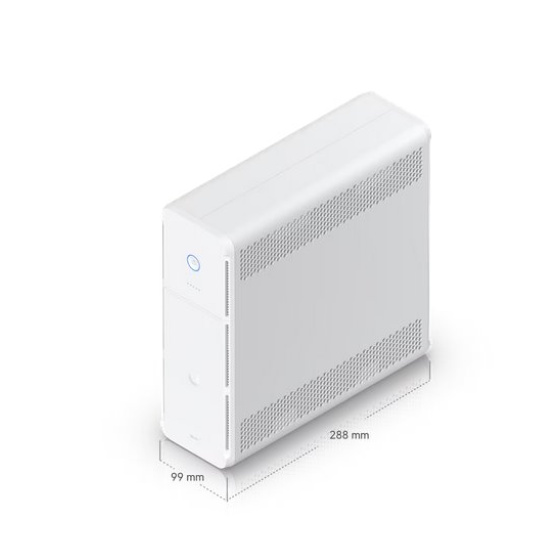

Ubiquiti model UPS-TOWER

Záložní zdroj napájení UniFi 1kVA s 5 záložními zásuvkami, 5 přepěťovými zásuvkami a baterií vyměnitelnou za provozu, 108 Wh, doba provozu 7 minut při poloviční zátěži (300 W).
Podporuje plynulé vypnutí pro UNVR a UNAS a zahrnuje kompatibilitu s NUT pro zařízení třetích stran.

Poznámka: Pro funkci plynulého vypnutí je vyžadován UniFi OS verze 4.4.3 nebo vyšší.

Dimensions   288 x 99 x 280.5 mm
Weight   7.85 kg
Enclosure Material   Polycarbonate and acrylonitrile butadiene styrene blend
Form Factor   Desktop
Weatherproofing   IP20

Management   Ethernet
Networking Interface   (1) 100/10 MbE port for network connection  + (2) GbE ports for surge in/out
Power
(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
(5) Battery backup/surge protection: C13
(5) Surge protection: C13

Capacity   1,000VA/600W
Type   Line interactive
Input Voltage Range   170—280V AC
Power Method   (1) TN system, 220—240V AC, 6A Max., 50/60 Hz
Nominal Input Voltage   230V AC
Output Voltage  220—240V AC
Nominal Output Voltage   230V AC
Frequency Range   AC mode: 50/60 Hz ±5 Hz (Auto sensing)
Battery mode: 50 Hz ±1 Hz AC Voltage Regulation  ±10% (Battery mode)
Transfer Time   6 ms typical; 10 ms max. (Battery mode)
Wave Form   Simulated sine wave (Battery mode)
Battery Type   (1) Lead Acid 12V, 9Ah
Runtime   Full load: 2 min / Half load: 7 min
Battery Charging Time   6-8 hours recovery to 90% capacity
Overload at On-Line Mode   110% 5 min go to fault / 120% go to fault immediately
Overload at Battery Mode   110% shutdown in 5 sec  /  120% shutdown immediately
Short Circuit Protection at On-Line Mode   Breaker, 250V AC, 10A
Output Short-Circuit Current   Ipeak 401.9A  /  Irms 160.7A
Buttons   (1) Power / (1) Factory reset

LEDs
Status
Off: device not turned on
Flashing white: initializing / factory default
Steady white: waiting for adoption
Steady blue: device adoption and working
Flashing blue: battery mode
Alternating white/blue: firmware upgrading
Rapid flashing blue: locate
Steady red: warning
Flashing red: low battery
Battery Indicator
All off: 0%
(1) Steady blue: battery 1—19%
(2) Steady blue: battery 20—39%
(3) Steady blue: battery 40—59%
(4) Steady blue: battery 60—79%
(5) Steady blue: battery 80—100%
Operating Altitude
3,000 m (1.9 mi)
Operating Environment
Pollution Degree 2
Ambient Storage Temperature
-20 to 50° C (-4 to 122° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
0 to 95% noncondensing
Certifications
CE, IEC 62040-1
