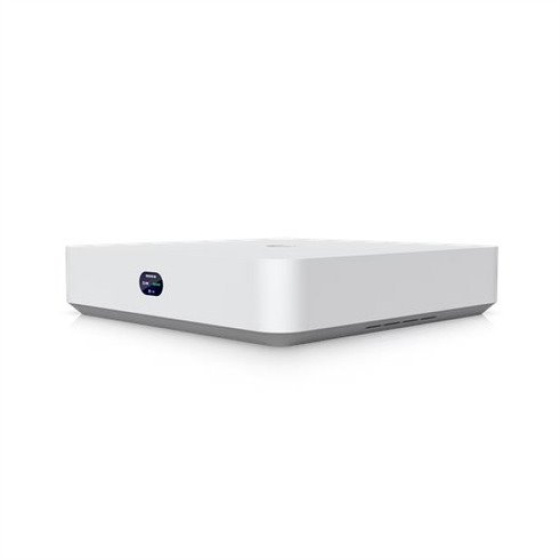

Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K camera or (15) Full HD cameras.
Technical Specifications
Overview
Dimensions 220 x 220 x 47 mm
UniFi Application Suite
Protect Yes
Access Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Storage Capacity
(1) 3.5" drive bay
Data Protection Yes
Vantage Point Yes
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor Compact Desktop
Mounting Wall, Din rail mount (Included)
Hardware
Hard Drive Capacity (1) 3.5" HDD support
Max. Power Budget for Drives 11W
Max. Power Consumption 9W
Power Method Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply AC/DC, Internal, 60W
PoE Budget 40W
Max. PoE Wattage per Port by PSE PoE 15.4W
Voltage Range PoE Mode 44–57V
Processor Quad-core ARM® Cortex®-A55 at 1.7 GHz
Memory 4 GB
Management Ethernet / Bluetooth
Display 1.14" screen
Weight 1.04 kg (2.3 lb)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
LEDs
Ethernet Yes
PoE Yes
Ambient Operating Temperature 0 to 40° C (32 to 104° F)
Ambient Operating Humidity 5 to 95% noncondensing
NDAA Compliant Yes
Certifications FCC, IC, CE, Electrical Safety, UL
