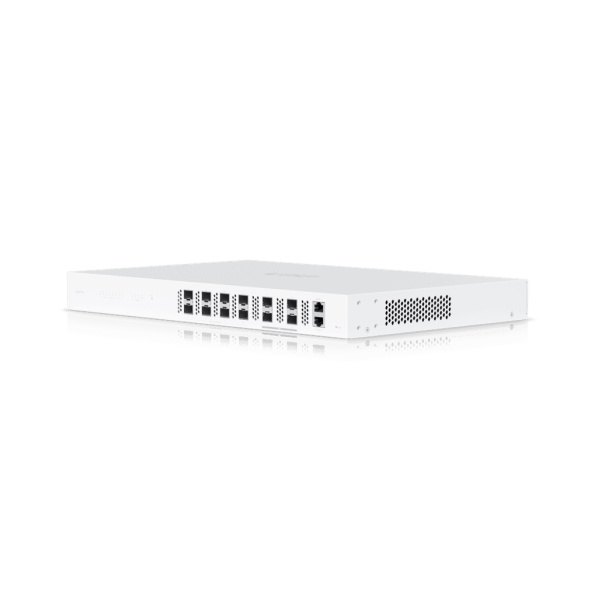

Ubiquiti model UISP-FIBER-OLT-XGS

An eight-port optical line terminal that can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.

XGS-PON 10 Gbps bi-directional capacity

2048 Client capacity (8 ports)

(4) 25G SFP28 uplink ports

1U rack mount

AC/DC power module redundancy support

Technical Specifications

Mechanical

Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")

Weight 5.29 kg (11.7 lb)

Enclosure material SGCC steel

Hardware

Networking interface (8) XGS/XG/GPON ports

(4) 1/10/25G SFP28 ports*

*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.

Management interface Ethernet out-of-band

Ethernet in-band

RJ45 serial console port

Bluetooth

Memory 512 MB DDR3

Onboard flash storage 64 MB NOR + 512 MB NAND

Power method (1) Universal AC input, 100-240V AC, 50/60 Hz

Power supply (2) Hotswap AC/DC PSU

Supported voltage range 100–240V AC

Max. power consumption 70W

Button (1) Factory reset

Ambient operating temperature -10 to 45° C (14 to 113° F)

Ambient operating humidity 10 to 95% non-condensing

Certifications CE, FCC, IC

LEDs

System Slow blinking white: system is booting

Fast blinking white: reset to default

Blinking white/blue: system is upgrading

Slow blinking blue: system is connecting to UISP

Fast blinking blue: locate system

Steady white: system is ready

Steady blue: system is ready and connected to UISP

MGMT port (1) White, steady on after link is up

PON ports (8) Steady white: PON link

SFP28 ports (4) White, steady on after link is up
