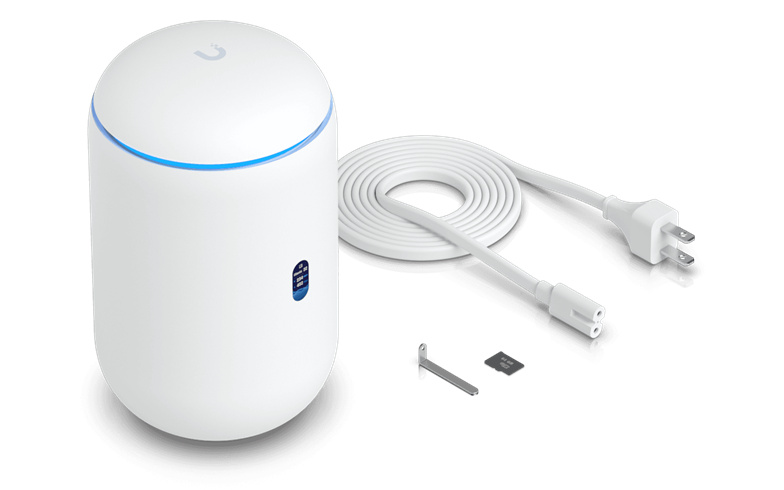

Ubiquiti model UDR7

Domácí desktopový 10Gbps clout router s integrovanou WiFi7, integrovaným PoE switchem, microSD storeage a integrovaný UniFi controler.

Overview

Dimensions   O  110 x 184.1 mm
UniFi Application Suite
           Network  Yes
           Protect  Yes
           Access   Yes
           Talk   Yes
           Connect   Yes

Managed UniFi Devices   30+
Managed Cameras
           (5) HD
           (2) 2K
           (1) 4K

Simultaneous Users Connected   300+
Default WAN Ports   (1) 10G SFP+
                               (1) 2.5 GbE RJ45
LAN Ports                (3) 2.5 GbE RJ45 including (1) PoE
IDS/IPS Throughput  2.3 Gbps
Form Factor  Compact desktop
Coverage Area   160 m² (1,750 ft²)


Security
Stateful Firewall   Yes
Application-Aware Layer 7 Firewall   Yes
DPI & Traffic Identification   Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)   Yes
Content Filtering   Yes
Intrusion Prevention (IPS/IDS)   Yes
Ad Blocking   Yes
IDS/IPS Signatures   20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation   Yes


VPN & SD-WAN

License-Free SD-WAN   Yes
Site-to-Site VPN
Site Magic   Yes
IPsec   Yes
OpenVPN   Yes
VPN Server
Identity Endpoint One-Click VPN   Yes
Teleport Zero-Configuration VPN   Yes
WireGuard   Yes
OpenVPN   Yes
L2TP   Yes
VPN Client
OpenVPN   Yes
WireGuard   Yes


Networking
Multi-WAN Load Balancing   Yes
Dynamic Routing  OSPF   Yes
Advanced QoS   Yes
Multicast DNS (mDNS)   Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)   Yes
Integrated RADIUS Server   Yes
RADIUS over TLS (RadSec)   Yes
Additional Internet Failover with UniFi LTE Backup   Yes
Internet Quality and Outage Reporting   Yes
MAC Address Table Size   2,000
Policy-based WAN and VPN Routing   Yes
Customizable DHCP Server   Yes
IPv6 ISP Support   Yes
IGMP Proxy   Yes
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput
6 GHz   5.7 Gbps
5 GHz   4.3 Gbps
2.4 GHz   688 Mbps

MIMO
6 GHz   2 x 2 (DL/UL MU-MIMO)
5 GHz   2 x 2 (DL/UL MU-MIMO)
2.4 GHz   2 x 2 (DL/UL MU-MIMO)

Antenna Gain
6 GHz   6 dBi
5 GHz   7 dBi
2.4 GHz   5 dBi


Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs  4 per Radio
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)


Hardware
NVR Storage   Pre-installed 64GB microSD for NVR
Expansion Slot   MicroSD Card
PoE Budget   15.4W
Max. PoE Wattage per Port by PSE   PoE  15.4W
Voltage Range PoE Mode   44-57V
Max. Power Consumption   26W (Excluding PoE output)
Power Method   Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply   AC/DC, Internal, 50W
Max. TX Power
6 GHz   24 dBm
5 GHz   26 dBm
2.4 GHz   23 dBm
Supported Voltage Range   100-240V AC
Processor   Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory   3 GB
Weight  1.1 kg (2.4 lb)
Enclosure Material   Polycarbonate
LCM Display   0.96" status display

Management
      Ethernet
      Bluetooth
      LEDs
System   Yes
ESD/EMP Protection    Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature   -10 to 40° C (14 to 104° F)
Ambient Operating Humidity   5 to 95% noncondensing
Certifications    CE, FCC, IC
Button   (1) Factory-reset


Software
VLAN   802.1Q
Guest Traffic Isolation   Yes
Application Requirements   UniFi Network   Version 9.0.108 and later
