Bezdrátová bridge - kleint s POE napájením pro připojení zařízení do sítě UniFi WiFi, s větší anténou a dosahem až 5km.
- např. IP kamera či UniFi access reader
- dosah až 5km
Overview

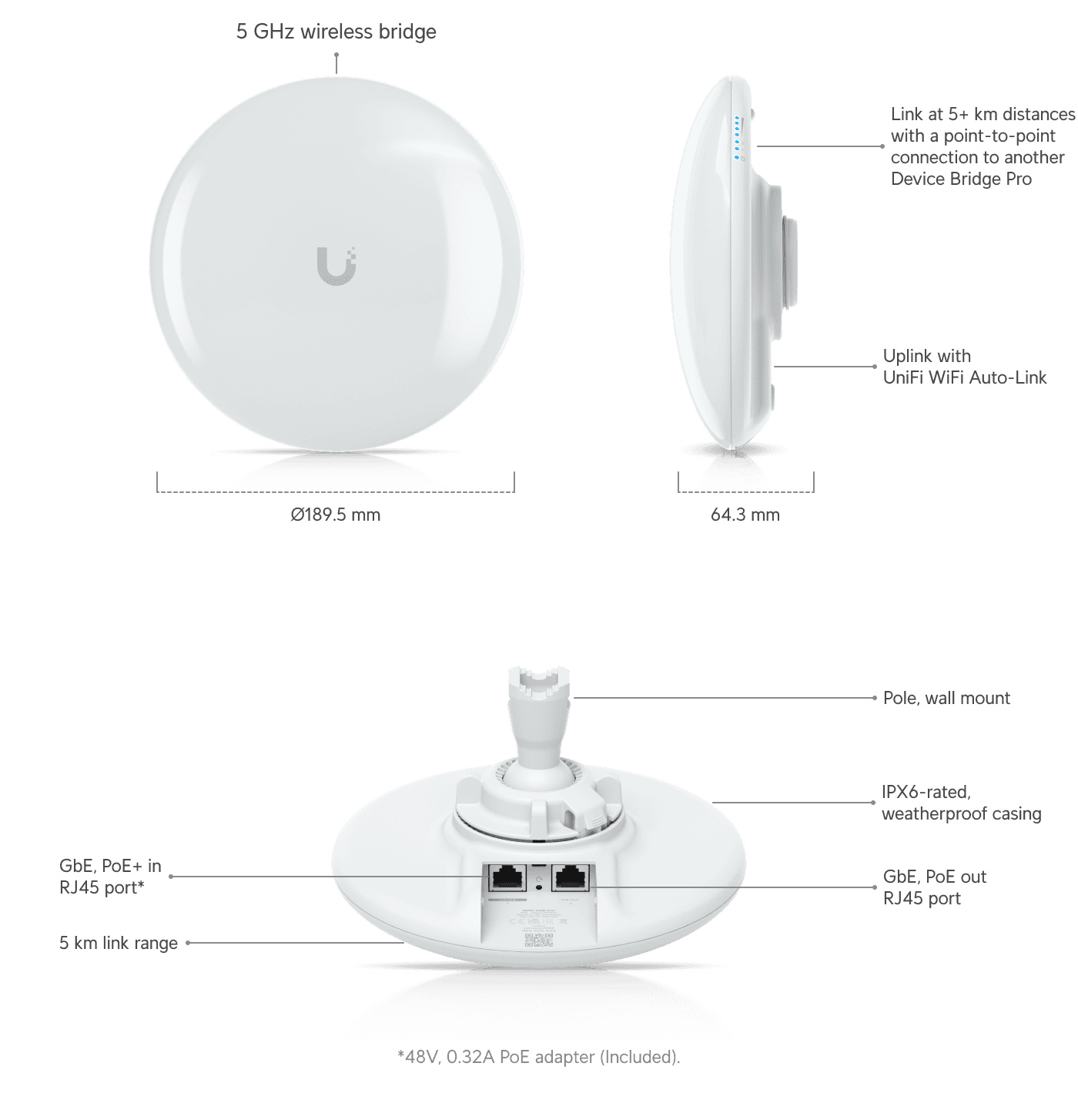

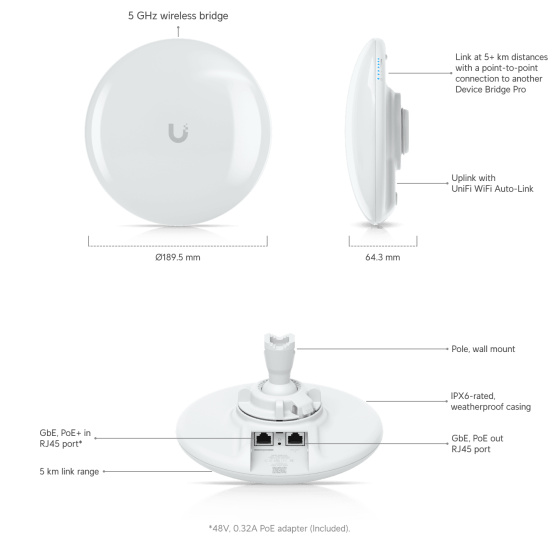

Dimensions O189.5 x 64.3 mm
WiFi Standard WiFi 5
Spatial Streams 2
Coverage Area 5 km (3.1 mi)
Mounting Locations Wall, pole
Weatherproofing IPX6
Power Method PoE
PoE+ (Required for PoE output)
Performance
MIMO 5 GHz 2 x 2
Max. Data Rate 5 GHz 867 Mbps (BW80)
Antenna Gain 5 GHz 19 dBi
Max. TX Power 5 GHz 25 dBm
Max. Conducted TX Power 25 dBm (Combined)
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Wireless Security WPA2 AES (Always On)
Hardware Max. Power Consumption 9W
Supported Voltage Range 42.5—57V DC
Networking Interface (2) GbE RJ45 ports
Antennas Internal
Management (1) PoE in (PoE output not used)
(1) Passive PoE output
Wind Loading 69 N at 200 km/h (15.5 lbf at 125 mph)
Weight Device: 431 g (0.95 lb)
With mount: 515 g (1.1 lb)
Mount Material UV-stabilized polycarbonate, stainless steel
Enclosure Material UV-resistant polycarbonate
Pole Mount Diameter 0.8–2.1" (20–53.1 mm)
Button (1) Factory-reset
LEDs System Power, Ethernet, (4) signal strength
Channel Bandwidth 20/40/80 (MHz)
Certifications CE, FCC, IC
Operating Frequency US/CA:
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature -40 to 60° C (-40 to 140° F)
Ambient Operating Humidity 5 to 95% noncondensing
