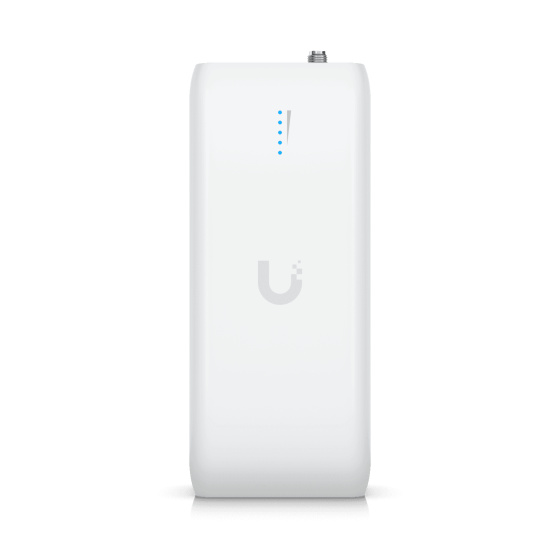

Ubiquiti model UDB

Bezdrátová bridge - kleint s POE napájením pro připojení zařízení do sítě UniFi WiFi

- např. IP kamera či UniFi access reader
- možnost připojit malou externí anténu

Overview
Dimensions   130 x 55 x 34 mm
WiFi Standard   WiFi 5
Spatial Streams   2
Mounting Locations   Wall, table
Power Method   100—240V AC, 0.45A Max., 50/60 Hz


Performance
MIMO
5 GHz   2 x 2
Max. Data Rate
5 GHz   866.7 Mbps (BW80)
Antenna Gain
5 GHz   Internal antenna: 5 dBi // External omni antenna: 4 dB
Max. TX Power
5 GHz   21 dBm
Supported Data Rates
802.11a   6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n   6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)   6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Wireless Security   WPA2 AES (Always On)


Hardware
Max. Power Consumption   25W (AC input) // 10W (Excluding PoE output)
Supported Voltage Range   100—240V AC
Networking Interface   (1) GbE RJ45 port
Antennas   (1) Internal antenna
                 (1) RP-SMA connector for external omni-antenna
Management   WiFi
Weight   200 g (7.1 oz)
Mount Material   Polycarbonate
Enclosure Material   Polycarbonate
Button   (1) Factory-reset
LEDs   System   (4) Blue: signal
                          (1) White/blue: indicator
Channel Bandwidth   20/40/80 (MHz)
Certifications   CE, FCC, IC
Operating Frequency   US/CA:
                                  U-NII-1 5150 - 5250 MHz
                                  U-NII-2A 5250 - 5350 MHz
                                  U-NII-2C 5470 - 5725 MHz
                                  U-NII-3 5725 - 5850 MHz
Worldwide:  5150 - 5875 MHz


Ambient Operating Temperature   -10 to 40° C (14 to 104° F)
Ambient Operating Humidity   5 to 95% noncondensing
