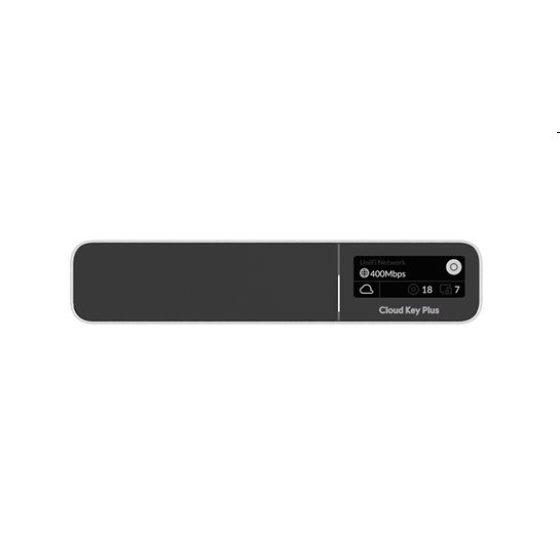

Ubiquiti model UCK-G2-SSD

Compact UniFi Console that connects directly to the Site Manager at https://unifi.ui.com/ for powerful, multi-application site management.

• Includes full UniFi application suite for device management
• Pre-installed 1TB SSD
• Connect and power using PoE
• Optional USB-C power with Quick Charge 2.0/3.0 compliant adapter only
• Bluetooth for instant setup

Mechanical
Dimensions 131.2 x 27.1 x 134.2 mm (5.2 x 1.1 x 5.3")
Weight 560 g (1.2 lb)
Enclosure material Anodized aluminum


Hardware
Processor Octa-core Arm® Cortex®-A53 based chip
Management interface Ethernet
Bluetooth
Networking interface (1) GbE RJ45 port
Memory 32 GB eMMC
3 GB RAM
SSD capacity 1 TB 2.5" SATA SSD (user-upgradeable*)
*CloudKey+ only supports drives that can operate on 5V power. Drives that require additional power are not supported.
Power method PoE
Quick charge 2.0/3.0 power adapter, 9V DC, 2A
Max. power consumption 9.6W
Display 1.42" gray-scale OLED
LEDs (1) Power: white/blue
Buttons (1) Power
(1) Factory reset
Ambient operating temperature 0 to 35° C (32 to 104° F)
Ambient operating humidity 20 to 80% noncondensing
Certifications FCC, CE, IC


Capacity
HD cameras 24
2K cameras  14
4K cameras 8

Assumes the UCK-G2-SSD is dedicated to UniFi Protect only. If it’s also running UniFi Network, your maximum camera limit will be lower.
