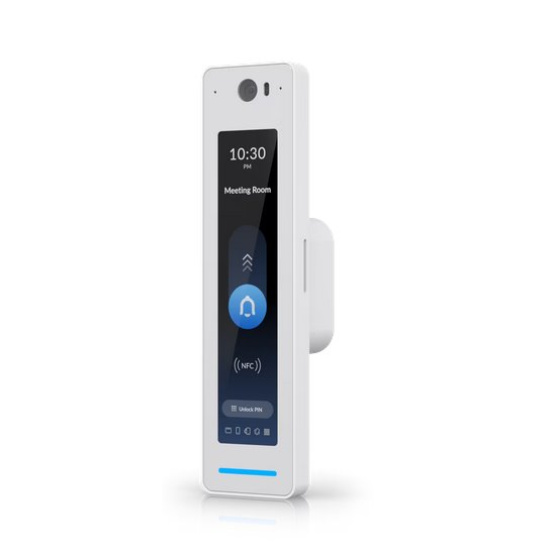

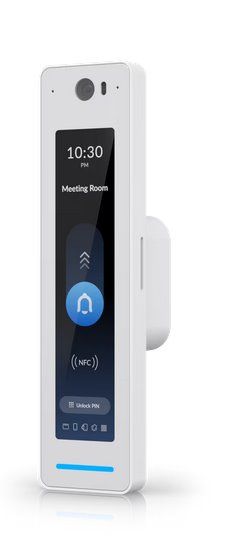

Ubiquiti model UA-G3-PRO-W

Profesionální čtečka G3 generace s displayem a s funkcí Touch Pass support.

Overview
Dimensions 160 x 40.4 x 40.55 mm

Integrated Camera  Yes
NFC Card & Keyfob Access  Yes
PIN Access  Yes
Apple/Google Wallet  Yes
Mobile Unlock  Yes
Two-Way Intercom & Doorbell Access  Yes
NDAA Compliant  Yes
UL 294 Level  Destructive attack: Level I
                     Line security: Level I
                     Endurance: Level I
                     Standby power: Level I
Weatherproofing  IP55


Mechanical

Weight  136 g (4.8 oz)
Enclosure Material  Polycarbonate, glass
Mount Material  Aluminum alloy
Mounting  Wall, gang-box mount (Included)
                Angle mount, junction box (Optional)


Hardware
Indoor and Outdoor Use  Yes
Ambient Operating Temperature   Device: -30 to 45° C (-22 to 113° F)
                                                 Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity  5 to 90% noncondensing
Networking Interface  (1) GbE RJ45 port
Connectivity  BLE 4.2
                    NFC
Power Method  PoE
                       UL 294 Power-limited Class 2 PSU
                       UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption  6W
Supported Voltage Range  48V DC
ESD/EMP Protection  Air: ±15kV, contact: ±8kV
Sensors  Proximity sensor
Display  120 mm (4.7") diagonal
Touch Screen Technology  Capacitive touch
Display Luminance  480 nits (Typical)
Screen Orientation  Portrait
Resolution  1280 x 286 px
Microphone  Yes
Speaker  Yes
LEDs  R/G/B/W/Amber Learn More
Button  (1) Factory-reset
NFC Frequency  13.56 MHz
NFC Read Range  < 30 mm (1.18'')
NFC Technology  ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
                          MIFARE Classic / MIFARE DESFIRE
                          Sony FeliCa™ (ID only)
                          NFC Forum tags T1T, T2T, T3T, T4T and T5T
                          ECP 2.0
PoE Cabling Requirements   Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
                                          The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement  Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
                            The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade  Grade assignment: I
Certifications  CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level  UA-G3-Pro-W/UA-G3-Pro-B, V01


Software
Management Application  Access
Software Information  The software version can be checked at https://unifi.ui.com
