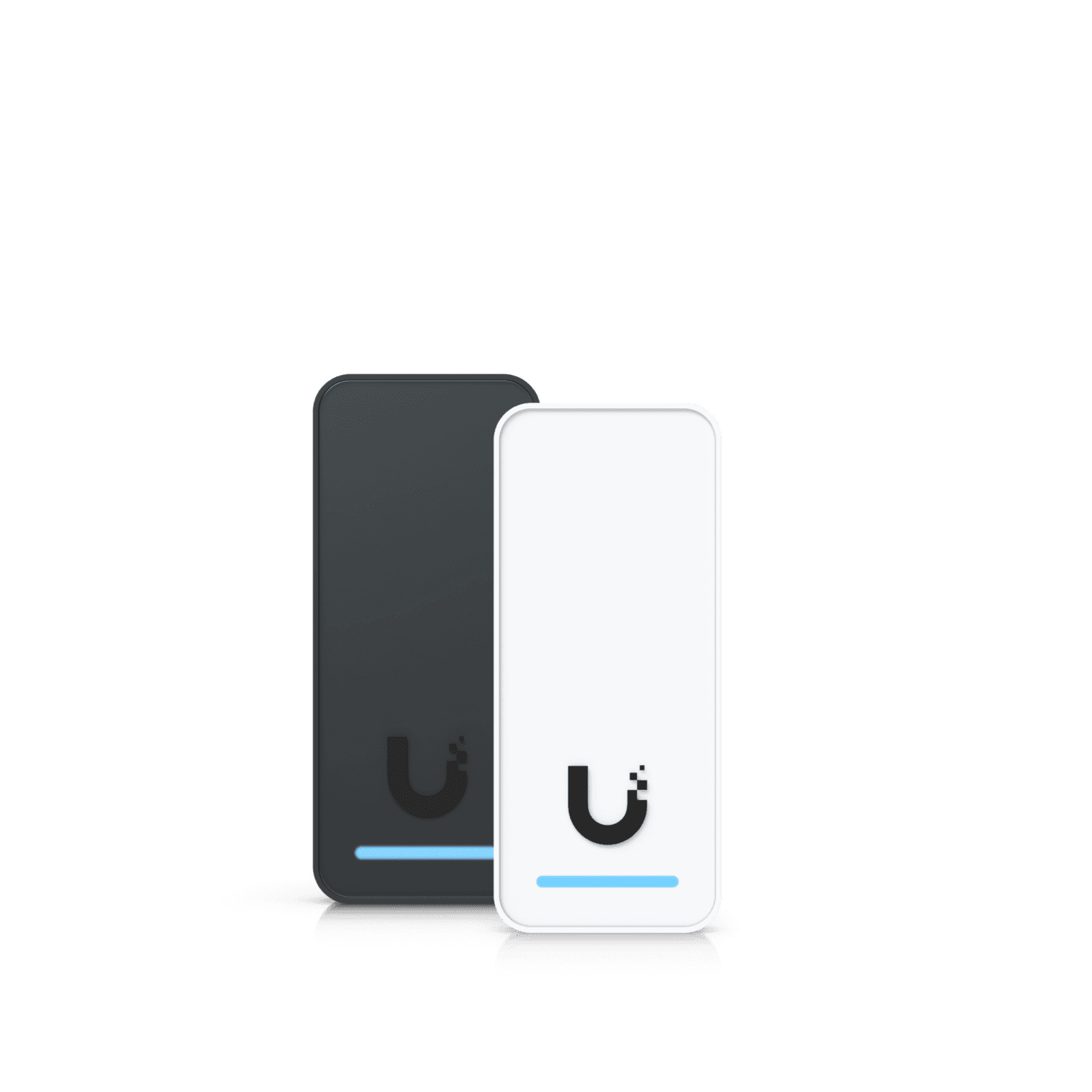

Ubiquiti model UA-G3-B
Kód: NTWUB-UA-G3-BNie je skladom
Základní čtečka G3 generace s funkcí Touch Pass support. Overview Dimensionsprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Popis Ubiquiti model UA-G3-B
Základní čtečka G3 generace s funkcí Touch Pass support.
| Overview | |
| Dimensions | 93 x 40 x 36.5 mm |
| NFC Card & Keyfob Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| Handwave Request to Exit | Yes |
| NDAA Compliant | Yes |
| UL 294 Level | Destructive attack: Level I |
| Line security: Level I | |
| Endurance: Level I | |
| Standby power: Level I | |
| Weatherproofing | IP55 |
| Mechanical | |
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |
| Mounting | In-wall, gang box (Included) |
| Junction box (Optional) | |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | -30 to 45° C |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 |
| NFC | |
| Power Method | PoE |
| UL 294 Power-limited Class 2 PSU | |
| UL 60950-1/62368-1 LPS/PS2 PSU | |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor |
| Speaker | yes |
| LEDs | R/G/B/W |
| Button | (1) Factory-reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) |
| MIFARE Classic / MIFARE DESFIRE | |
| Sony FeliCa™ (ID only) | |
| NFC Forum tags T1T, T2T, T3T, T4T and T5T | |
| ECP 2.0 | |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. |
| The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. | |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. |
| The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. | |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3, V01 |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at https://unifi.ui.com |
