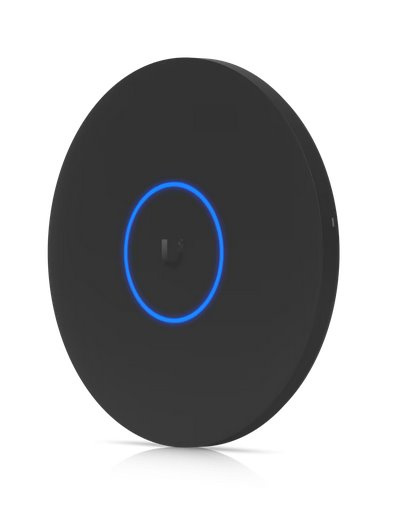

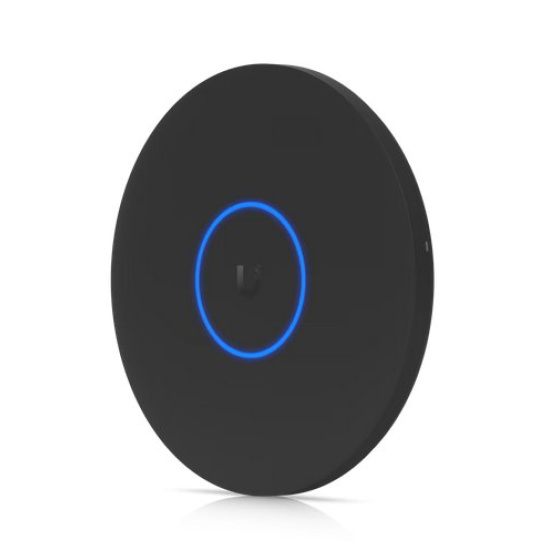

Ubiquiti model U7-PRO-XG-B

WiFi 7 AP pro interiérové použití se 6 samostatnými streamy a přidaným vysílacím pásmem v 6GHz a LAN portem s rychlostí až 10Gbps

- WiFi 7
- 6 samostatných streamů
- pokrytí 140 m²
- 300+ samostatných připojených klientů
- napájení přes POE+
- 10/5/2,5/1 GbE uplink
- montážní držák na zeď / strop

Overview
Dimensions   O206 x 32.5 mm
WiFi Standard   WiFi 7
Spatial Streams   6
Coverage Area   140 m² (1,500 ft²)
Max. Client Count   300+
Uplink   10 GbE
Mounting   Ceiling, Wall   (Lite Mount Included)
Power Method   PoE+
Performance
MIMO
6 GHz   2 x 2 (DL/UL MU-MIMO)
5 GHz   2 x 2 (DL/UL MU-MIMO)
2.4 GHz   2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz   5.8 Gbps (BW320)
5 GHz   4.3 Gbps (BW240)
2.4 GHz   688 Mbps (BW40)
Antenna Gain
6 GHz   6 dBi
5 GHz   5 dBi
2.4 GHz   4 dBi
Max. TX Power
6 GHz   24 dBm
5 GHz   26 dBm
2.4 GHz   23 dBm
Max. BSSIDs   8 per Radio
Supported Data Rates
802.11be (WiFi 7)   6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)   5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)   7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)  6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n   6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing   Yes
Band Steering   Yes
802.11v BSS Transition Management   Yes
802.11r Fast Roaming   Yes
802.11k Radio Resource Management (RRM)   Yes
Advanced Radio Management   Yes
Passpoint (Hotspot 2.0)   Yes
Captive Hotspot Portal
Custom Branding Landing Page   Yes
Voucher Authentication   Yes
Payment-Based Authentication   Yes
External Portal Server Support   Yes
Password Authentication   Yes
Guest Network Isolation   Yes
Private Pre-Shared Key (PPSK)   Yes
WiFi Speed Limiting   Yes
Client Device Isolation   Yes
WiFi Schedules   Yes
RADIUS over TLS (RadSec)   Yes
Dynamic RADIUS-assigned VLAN   Yes

Hardware
Max. Power Consumption   22W
Supported Voltage Range   42.5—57V DC
Networking Interface   (1) 10 GbE RJ45 port
Weight   750 g (1.7 lb)
Management   Ethernet
Enclosure Material   UV-stabilized polycarbonate, aluminum alloy
Mount Material   Stainless steel (SUS304), galvanized steel (SGCC)
LEDs   System   White/Blue
Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant   Yes
Certifications   CE, FCC, IC
Ambient Operating Temperature   -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity   5 to 95% noncondensing

Software
Application Requirements    UniFi Network  Version 9.0.114 and later (U7 Pro XG - White)   Version 9.1.120 and later (U7 Pro XG - Black)
