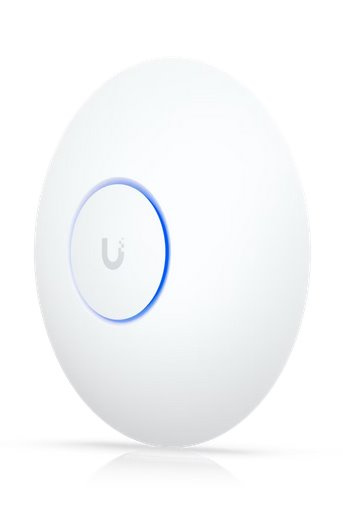

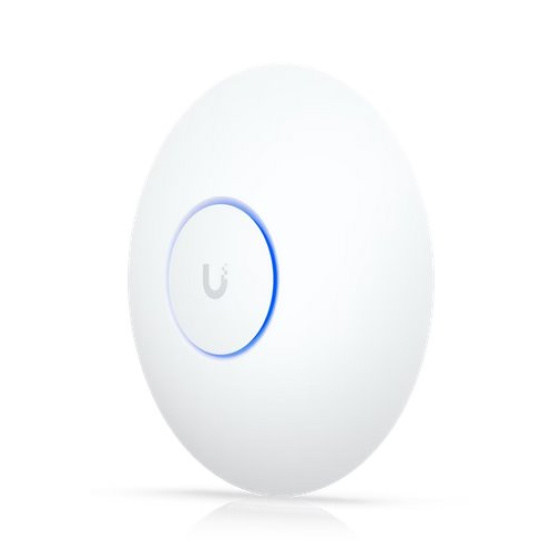

Ubiquiti model U7-LR

WiFi 7 AP pro interiérové použití se 5 samostatnými streamy a zvýšeným vysílacím výkonem pro větší pokrytí signálem.

- WiFi 7
- 5 samostatných streamů
- pokrytí 165 m²
- 300+ samostatných připojených klientů
- napájení přes POE+
- 2.5 GbE uplink
- montážní držák na zeď / strop


Overview
Dimensions O175.7 x 43 mm
WiFi Standard  WiFi 7
Spatial Streams  5
Coverage Area  160 m² (1,750 ft²)
Max. Client Count  300+
Uplink  2.5 GbE
Mounting  Ceiling, Wall  (Plastic Mounting Plate included)
Power Method  PoE


Performance
MIMO
5 GHz  3 x 3 (DL/UL MU-MIMO)
2.4 GHz  2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz   4.3 Gbps (BW160)
2.4 GHz   688 Mbps (BW40)
Antenna Gain
5 GHz   6 dBi
2.4 GHz   4 dBi
Max. TX Power
5 GHz   27 dBm
2.4 GHz   26 dBm
Supported Data Rates
802.11be (WiFi 7)    7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)    7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)    6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n    6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features
Wireless Meshing   Yes
Band Steering   Yes
802.11v BSS Transition Management   Yes
802.11r Fast Roaming   Yes
802.11k Radio Resource Management (RRM)   Yes
Advanced Radio Management   Yes
Passpoint (Hotspot 2.0)   Yes
Captive Hotspot Portal   Custom Branding Landing Page  Yes
Voucher Authentication   Yes
Payment-Based Authentication   Yes
External Portal Server Support   Yes
Password Authentication  Yes
Guest Network Isolation   Yes
Private Pre-Shared Key (PPSK)   Yes
WiFi Speed Limiting   Yes
Client Device Isolation   Yes
WiFi Schedules   Yes
RADIUS over TLS (RadSec)   Yes
Dynamic RADIUS-assigned VLAN   Yes

Hardware
Max. Power Consumption   14W
Includes PoE Adapter   No
Supported Voltage Range   42.5—57V DC
Networking Interface   (1) 2.5 GbE RJ45 port
Weight   448 g (15.8 oz)
Management   Ethernet
Enclosure Material   Polycarbonate, aluminum alloy
Mount Material   Polycarbonate, galvanized steel (SGCC)
LEDs   System  White/Blue
Channel Bandwidth   HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant   Yes
Certifications   CE, FCC, IC
Ambient Operating Temperature   -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity   5 to 95% noncondensing


Software
Application Requirements
UniFi Network   Version 9.1.120 and later
Mobile App   iOS™ version 10.20.2 and later   Android™ version 10.21.7 and later
