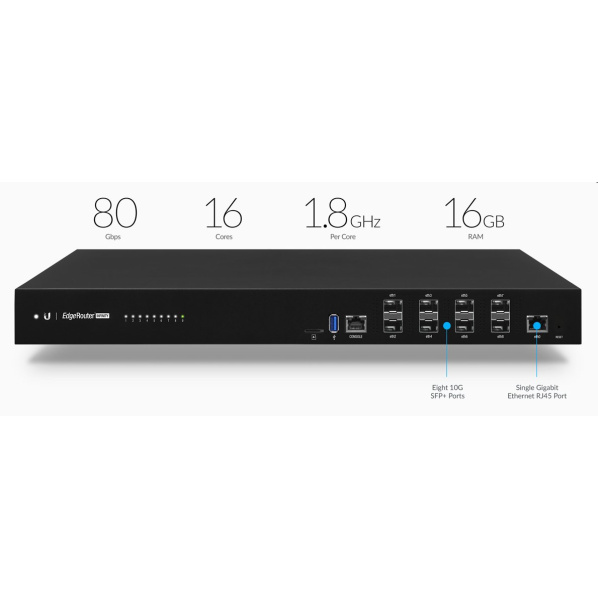

Ubiquiti model ER-8-XG

Compact, rack-mountable router with Gigabit Ethernet and fiber uplink capability and an 80 Gbps aggregate throughput.

(1) GbE RJ45 port

(8) 10G SFP+ ports

(2) Hot-swappable AC/DC PSU

Rack-mountable, 1U

Technical Specifications

Mechanical

Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")

Weight Without mount: 4.95 kg (10.9 lb)

With mount: 5.05 kg (11.1 lb)

Hardware

Processor MIPS64 16 Core 1.8 GHz

System memory 16 GB DDR4 RAM

On-board flash storage 8 MB NOR

4 GB eMMC NAND

Networking interface (1) RJ45 serial port

(8) SFP+ ports

(1) GbE RJ45 port

Power method (2) Hot-swappable AC/DC PSU

Supported voltage range AC input: 100–240V AC

Max. power consumption 100W

ESD/EMP protection Air: ± 24 kV, contact: ± 24 kV

Button Factory reset

LEDs System SFP+ data: Status

RJ45 ports: link/activity

Data port: link/activity

Button Factory reset

Mounting Rack

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC
