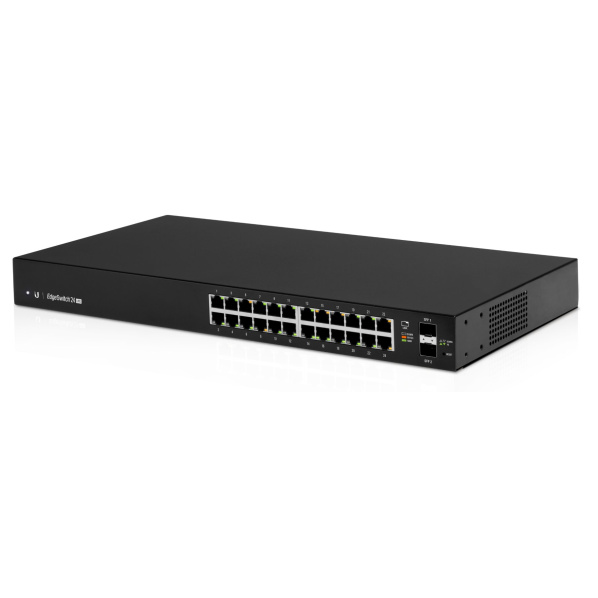

Ubiquiti model ES-24-LITE

Layer 2/3 switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 25W power supply.

(24) GbE RJ45 ports

(2) SFP ports

Wall or rack-mountable

Technical Specifications
Mechanical

Dimensions 443 x 43 x 221 mm (17.4 x 1.7 x 8.7")

Weight Without rack-mount brackets: 2.5 kg (5.5 lb) With rack-mount brackets: 2.6 kg (5.7 lb)

Hardware

Networking interface (24) 10/100/1000 Mbps RJ45 Ethernet ports

(2) 1/10 Gbps SFP+ Ethernet ports

Management interface (1) RJ45 serial port, Ethernet In/Out-Band

Total non-blocking throughput 26 Gbps

Switching capacity 52 Gbps

Forwarding rate 38.69 Mpps

Power method (24) 10/100/1000 Mbps RJ45 Ethernet ports

(2) 1/10 Gbps SFP+ Ethernet ports

Power supply AC/DC, internal, 25W

Max. power consumption 25W

LEDs RJ45 ports: speed/link/activity

SFP ports: speed/link/activity

Rackmount Yes, 1U high

ESD/EMP protection Air/contact: ±24 kV

Shock and vibration ETSI300-019-1.4 Standard

Ambient operating temperature -5 to 40° C (23 to 104° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC
