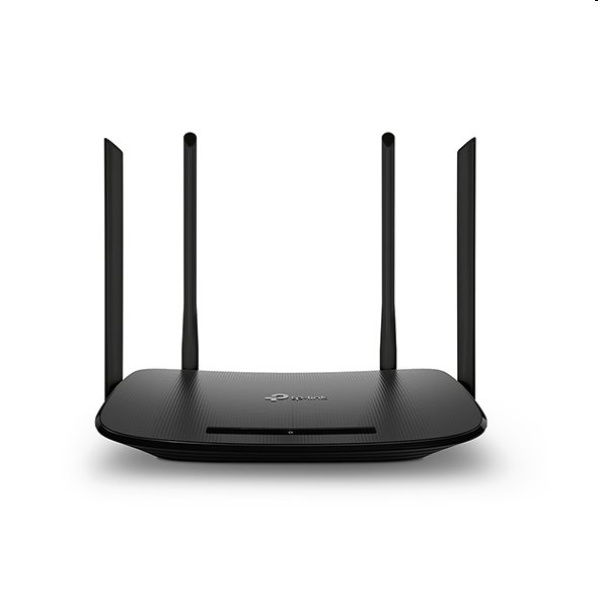

tp-link Archer VR300, VDSL/ADSL Dualband Wireless Modem/Router, 1200Mbit/s, 802.11ac/a/b/g/n, 1xRJ11, 1x Wan, 3x LAN

AC1200 Wireless VDSL/ADSL Modem Router Archer VR300 Parental Controls: manage responsible internet access for your children Guest Network|: provides separate access for guests while securing the home network Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding Quality of Service: prioritizes network traffic by device or application IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application IPv6: compatible with IPv6 (Internet Protocol version 6) Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO) HARDWARE FEATURES Interface 3 10/100 RJ45 LAN Ports 1 10/100 RJ45 LAN/WAN Port 1 RJ11 Port Button WPS Button Power On/Off Button Reset Button Power Supply 12VDC/1A VDSL2 Standards ITU G.993.2, Up to 17a pro¬le (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) ADSL Standards Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 ADSL2 Standards ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) ADSL2+ Standards ITU-T G.992.5 Dimensions ( W x D x H ) 385*290*76mm Antenna Type 4 ?fixed external antennas WIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz Wireless Speeds 867Mbps at 5GHz 300Mbps at 2.4GHz Transmit Power 2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP) Wireless Functions Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable Wireless Security WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS) SOFTWARE FEATURES Quality of Service ATM QoS, Bandwidth Control Security NAT Firewall, Access Control, IP and MAC Address Binding Operating Modes VDSL/ADSL Modem Router, Wireless Router Management Web Based Con¬guration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools DHCP Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding Virtual Server, Port Triggering, DMZ, ALG, UPnP Dynamic DNS DynDns, NO-IP VPN Pass-Through PPTP, L2TP, IPSec Passthrough Protocols Supports IPv4 and IPv6 ATM/PPP Protocols ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs Advanced Functions Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 Guest Network 2.4GHz guest network, 5GHz guest network OTHERS Certification CE, RoHS, RCM Package Contents · AC1200 Wireless VDSL/ADSL Modem Router Archer VR300 · External Splitter · RJ11 DSL Cable · RJ45 Ethernet Cable · Power Adapter · Quick Installation Guide System Requirements · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux · Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser · Subscription with an Internet Service Provider (for Internet access) Environment · Operating Temperature: 0?~40? (32? ~104?) · Storage Temperature: -40?~70? (-40? ~158?) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~90% non-condensing
