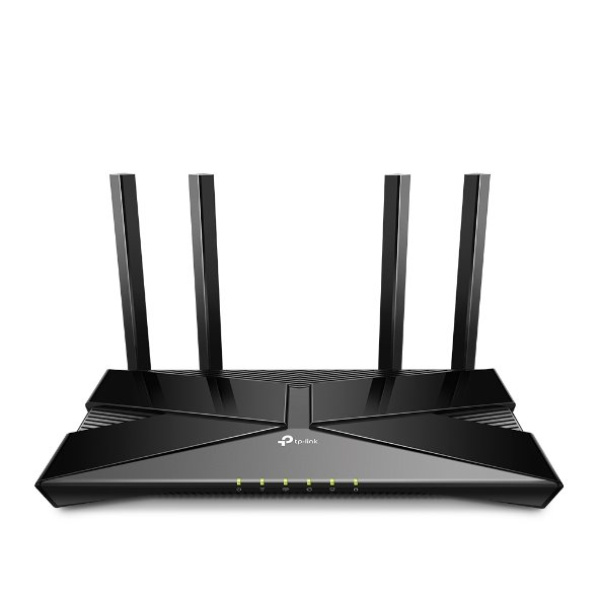

tp-link Archer AX53, AX3000 Dual-Band Wi-Fi 6 Router

WIRELESS Standards Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 2-3 Bedroom Houses4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage WiFi Capacity HighDual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode HARDWARE Processor Dual-Core CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports Buttons Wi-Fi/WPS Button Power On/Off Button Reset Button Power 12 V ? 2 A SECURITY WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP VPN SOFTWARE Protocols IPv4 IPv6 Service Kits HomeShield Learn More> OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> Parental Controls HomeShield Parental ControlsCustom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Tether App Webpage Check Web Emulator> OTHER System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing TEST DATA WiFi Transmission Power CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) FCC: <30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) WiFi Reception Sensitivity 2.4GHz: 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-97dBm 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-97dBm 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-94dBm 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm 11ax HE160_MCS11:-58dBm PHYSICAL Dimensions (W×D×H) 10.2 × 5.3 × 1.6 in (260.2 × 135 × 41.6 mm) Package Contents Wireless Router Archer AX53 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
