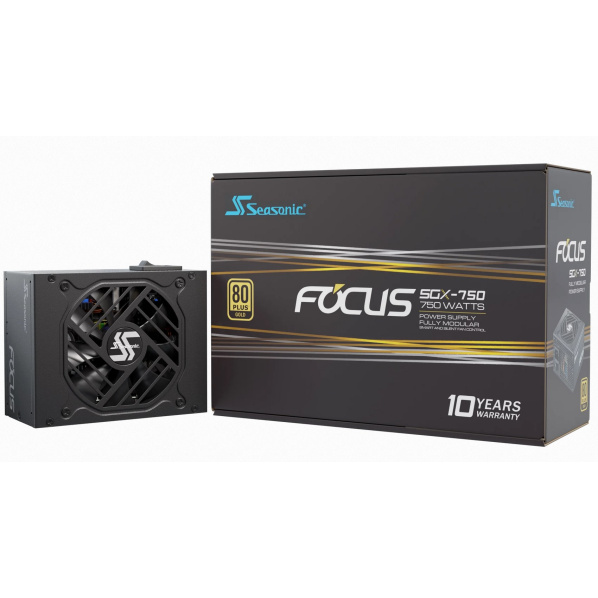

Seasonic FOCUS SGX SFX GOLD 750W, modular

FOCUS SGX (2021) The new line of Seasonic’s FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity. Please contact your local sales representative for the availability. Specifications 750 W Technical Specifications 80PLUS® Gold Cybenetics Efficiency Level TBA Cybenetics Noise Level TBA Form Factor SFX Dimensions 125 × 100 × 63.5 mm Fan Information Fan Size 92 mm Fan Control Premium Hybrid Fan Control Fan Bearing Fluid Dynamic Bearing Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH Cable Information Modularity Fully Modular Cable type Flat black cables Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) MTBF @ 25 °C, excl. fan 100,000 hours AC Input Full Range Protection OPP, OVP, UVP, OCP, OTP, SCP Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH Warranty 10 Years Power Output AC Input 100 V - 240 V 10 - 5 A 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 20 A 20 A 62 A 0.3 A 3 A 100 W 744 W 3.6 W 15 W Total continuous power 750 W
