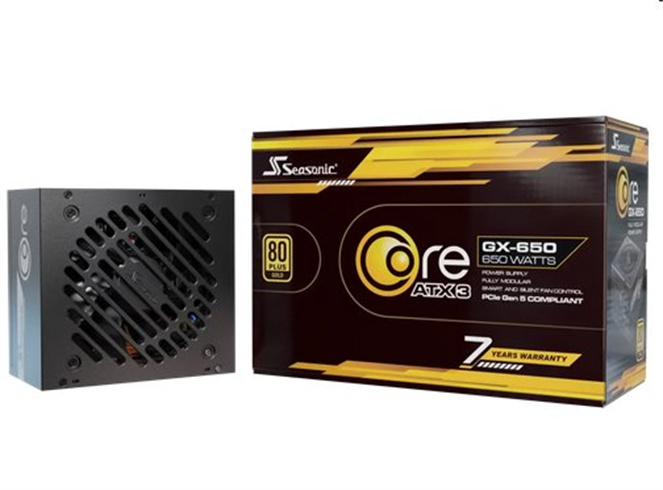

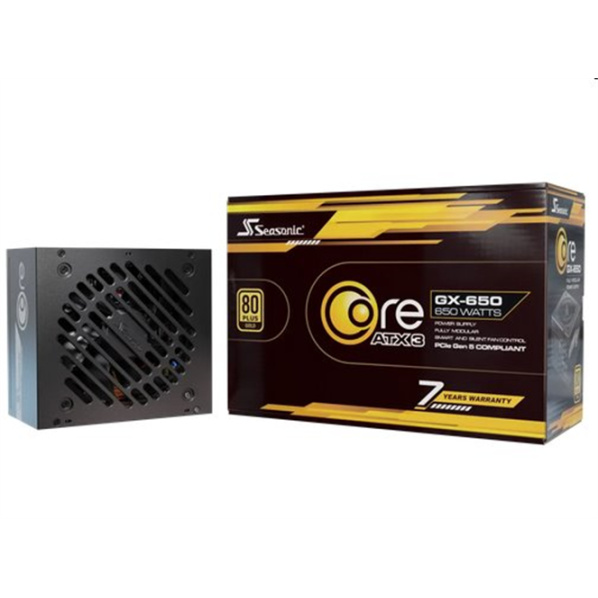

Seasonic CORE GX GOLD 650W V2 ATX 3.1, PCIe 5.1, modular

CORE GX ATX 3 (2024) The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level. These quality power supplies are backed up by Sea Sonic’s 7-year worldwide manufacturer’s warranty. Technical Specifications 80PLUS® Gold Cybenetics Efficiency Level TBA Cybenetics Noise Level TBA Form Factor ATX/EPS Dimensions 140 × 150 × 86 mm Fan Information Fan Size 120 mm Fan Control Smart and Silent Fan Control Fan Bearing Hydro Dynamic Bearing Life Expectancy 25,000 hours at 40 °C, 15 % — 65 % RH Cable Information Modularity Fully Modular Cable type Individual Black Cables with Braided Pattern Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly) MTBF @ 25 °C, excl. fan 100,000 hours AC Input Full Range Protection OPP, OCP, OTP, OVP, SCP, UVP Safety and Environmental Safety and EMC BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA Environmental Compliance Energy Star, ErP Lot 6, REACH, RoHS, WEEE Warranty 7 Years Power Output AC Input 100 V - 240 V 9 - 4.5 A 50 Hz - 60 Hz DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB Maximum Power 20 A 20 A 54 A 0.3 A 3 A 100 W 648 W 3.6 W 15 W Total continuous power 650 W
