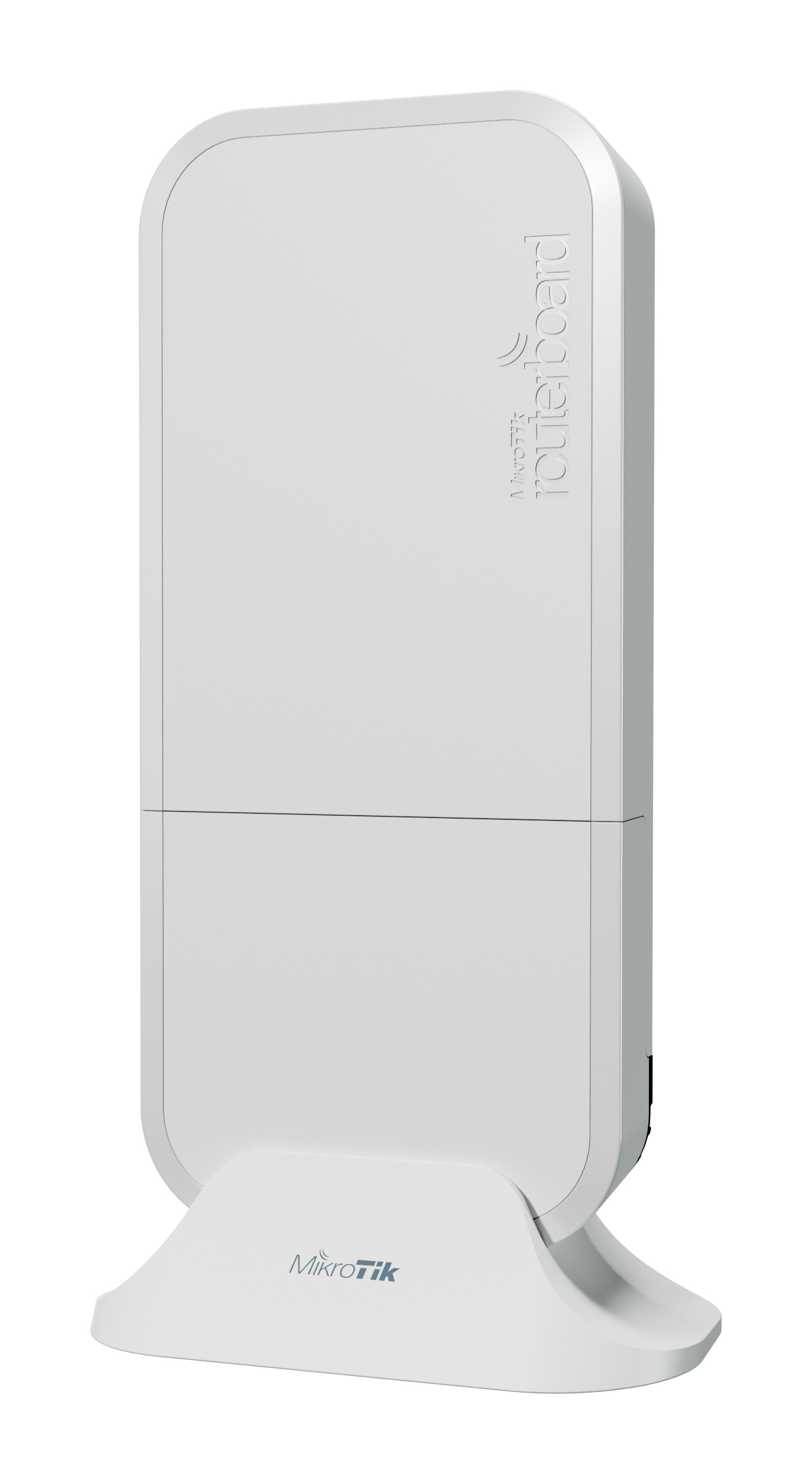

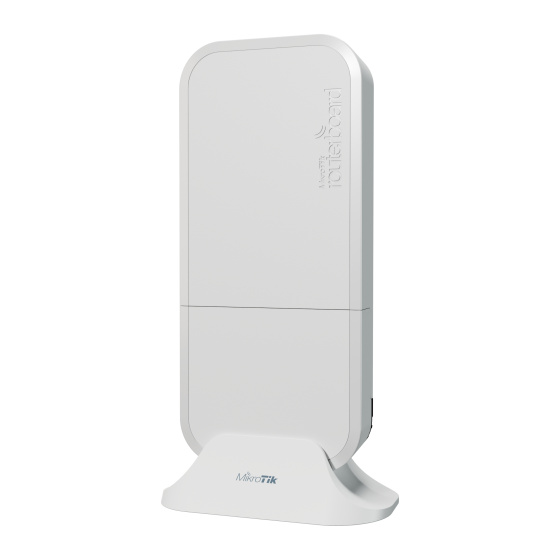

MIKROTIK RouterBOARD wAPG-5HaxD2HaxD + L4 (800MHz, 256MB RAM, 2xGLAN, 1x 802.11ax) outdoor
Kód: MIKRO-WAPG-5HAXD2HAXDExt. skladom do 24 hodin
tabulka datové propustnosti Specifications Details Product code wAPG-5HaxD2HaxD Aprečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Popis MIKROTIK RouterBOARD wAPG-5HaxD2HaxD + L4 (800MHz, 256MB RAM, 2xGLAN, 1x 802.11ax) outdoor
tabulka datové propustnosti
Specifications
| Details | |
|---|---|
| Product code | wAPG-5HaxD2HaxD |
| Architecture | ARM |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Wireless capabilities
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 7 |
| Wireless 2.4 GHz chip model | IPQ-5010 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 2400 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 7 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
| WiFi speed | AX3000 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 2 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 9 W |
| Max power consumption without attachments | 9 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
