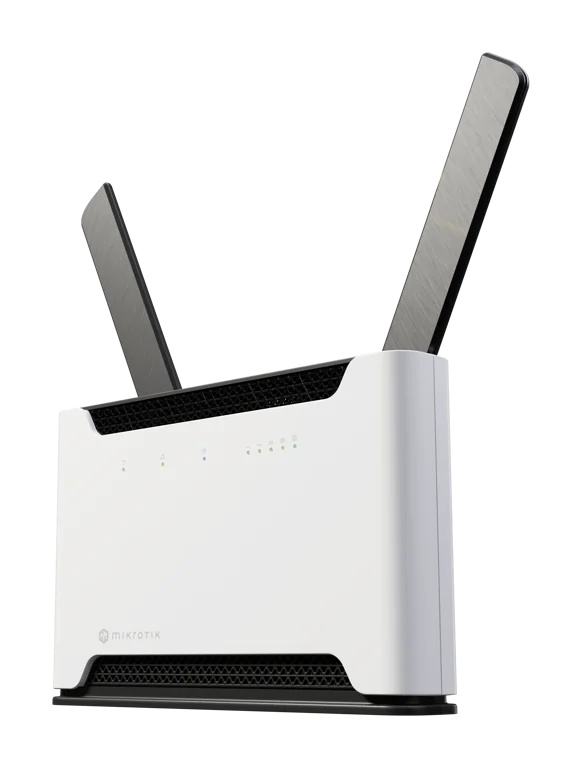

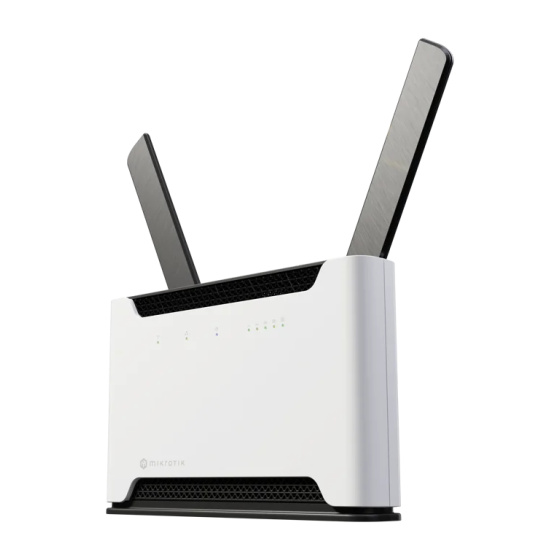

MIKROTIK RouterBOARD Chateau 5G R17 ax + L4 (1,8GHz; 1GB RAM, 1x 2.5G 5xGLAN switch, 1x 2,4/5GHz 802.11ax, 5G plastic case, zdroj

Specifications

    Product code S53UG+5HaxD2HaxD-TC&RG650E-EU
    Architecture ARM 64bit
    CPU IPQ-6010
    CPU core count 4
    CPU nominal frequency 864-1800 MHz
    CPU Threads count 4
    Switch chip model IPQ-6010
    RouterOS license 4
    Operating System RouterOS v7
    Size of RAM 1 GB
    Storage size 128 MB
    Storage type NAND
    MTBF Approximately 200'000 hours at 25C
    Tested ambient temperature -40°C to 70°C

Powering

    Number of DC inputs 1 (DC jack)
    DC jack input Voltage 12-28 V
    Max power consumption 27 W
    Max power consumption without attachments 18 W
    Cooling type Passive

Mobile

    3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
    3G bands 1 (2100MHz)
    5 (850MHz)
    8 (900MHz)
    LTE Category 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
    MIMO DL 4x4
    MIMO UL 1x1 (5G SA MIMO UL 2x2)
    LTE FDD bands 1 (2100MHz)
    3 (1800MHz)
    5 (850MHz)
    7 (2600MHz)
    8 (900 MHz)
    20 (800MHz)
    28 (700MHz)
    32 (1500 MHz)
    LTE TDD bands 38 (2600MHz)
    41 (2500MHz)
    42 (3500MHz)
    40 (2300MHz)
    43 (3700MHz)
    5G NSA FDD bands 1 (2100 MHz)
    3 (1800 MHz)
    5 (850 MHz)
    7 (2600 MHz)
    8 (900 MHz)
    20 (800 MHz)
    26 (850 MHz)
    28 (700 MHz)
    67 (700 MHz)
    75 (1500 MHz)
    76 (1500 MHz)
    5G NSA TDD bands 38 (2600 MHz)
    40 (2300 MHz)
    41 (2500 MHz)
    77 (3700 MHz)
    78 (3500 MHz)
    5G SA FDD bands 1 (2100 MHz)
    3 (1800 MHz)
    5 (850 MHz)
    7 (2600 MHz)
    8 (900 MHz)
    20 (800 MHz)
    26 (850 MHz)
    28 (700 MHz)
    67 (700 MHz)
    75 (1500 MHz)
    76 (1500 MHz)
    5G SA TDD bands 38 (2600 MHz)
    40 (2300 MHz)
    41 (2500 MHz)
    77 (3700 MHz)
    78 (3500 MHz)
    TAC 86896506

Wireless specifications

    Wireless 2.4 GHz Max data rate 574 Mbit/s
    Wireless 2.4 GHz Number of chains 2
    Wireless 2.4 GHz standards 802.11b/g/n/ax
    Antenna gain dBi for 2.4 GHz 3
    Wireless 2.4 GHz chip model QCN-5022
    Wireless 2.4 GHz generation Wi-Fi 6
    Wireless 5 GHz Max data rate 1200 Mbit/s
    Wireless 5 GHz Number of chains 2
    Wireless 5 GHz standards 802.11a/n/ac/ax
    Antenna gain dBi for 5 GHz 6
    Wireless 5 GHz chip model QCN-5052
    Wireless 5 GHz generation Wi-Fi 6

Ethernet

    10/100/1000 Ethernet ports 4
    Number of 2.5G Ethernet ports 1

Peripherals

    Number of SIM slots 1 Modem (Micro SIM)
    Number of USB ports 1
    USB Power Reset Yes
    USB slot type USB type A
    Max USB current (A) 1.5

Other

    CPU temperature monitor Yes
    PCB temperature monitor Yes
    Voltage Monitor Yes
    Mode button Yes
    eSIM Yes

Certification & Approvals

    Certification CE, EAC, ROHS
    IP 20
