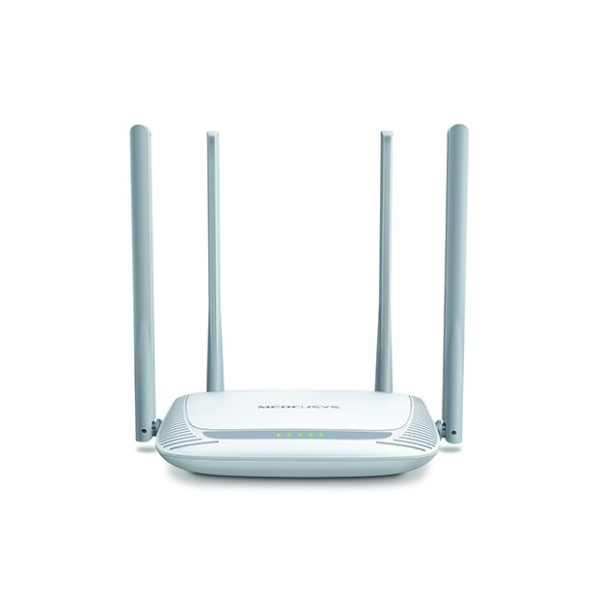

MERCUSYS MW325R, 300Mbps Enhanced Wireless N Router

300Mbps Enhanced Wireless N Router MW325R Maximum coverage – four 5dBi antennas provide up to 500m2 of wireless coverage Enhanced signal – high gain antennas dramatically increase wireless signal strength, size and stability 300Mbps wireless speed - ideal for HD streaming, online gaming, and large file downloads Easy installation - intuitive webpage guides you through the setup process in minutes *Range specications are based on performance test results. Real performance varies in accordance with applications and environmental conditions. Dimensions (W X D X H) 167 x 118 x 33 mm Interfaces 4 10/100Mbps LAN ports 1 10/100Mbps WAN port Button Reset button External Power Supply 9VDC/0.6A Antenna Type 4 x 5dBi fixed omni directional antennas Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency 2.4 - 2.4835GHz Signal Rate 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) Reception Sensitivity 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER Certifications CE, ROHS Package Contents 300Mbps Enhanced Wireless N Router MW325R Power adapter Quick installation guide Ethernet cable Environment Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing Transmission Power <20dBm Wireless Security WPA-PSK / WPA2-PSK Wireless Functions WDS bridge WAN Type Dynamic IP/Static IP/PPPoE Management Access control Local management Remote management DHCP Server Port Forwarding Virtual server, UPnP, DMZ Dynamic DNS Oray Firewall Security IP and MAC address binding Protocols IPv4 Guest Network 2.4GHz guest network
