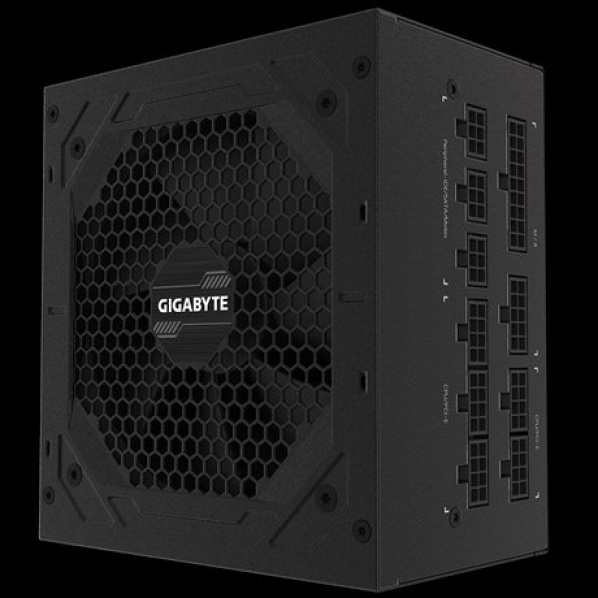

Gigabyte P750GM 750W 80+ Gold Modular

GP-P750GM P750GM 80 PLUS Gold certified Fully modular design 120mm Smart Hydraulic Bearing (HYB) Fan Main Japanese capacitors Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection Compact size 5 years warranty (Adjusted according to different regions) Model GP-P750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6 A Input Frequency 60-50 Hz Output Capacity 750W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing ( HYB ) fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm*2 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 : 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm *1
