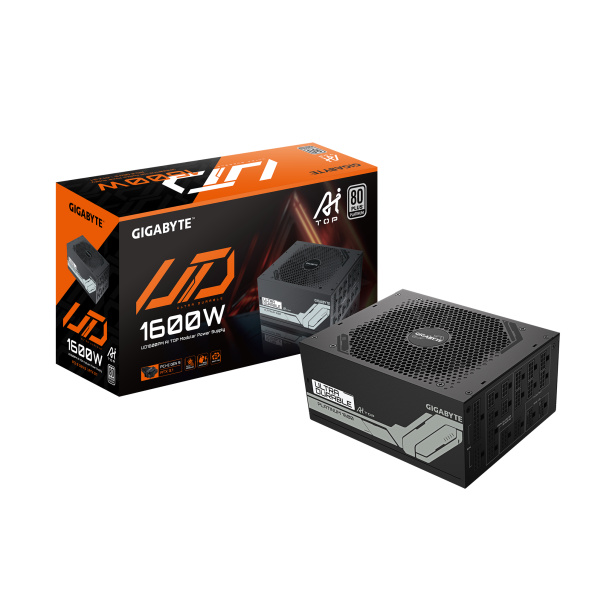

Gigabyte UD1600PM PG5 AI TOP 1600W 80+ PLATINUM Modular

KEY FEATURE 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards ATX 3.1 and PCIe Gen 5.0 ready Server-grade Ultra Durable Main Japanese capacitors Enhanced thermal solution 140mm smart double ball bearing fan OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Platinum certified Fully modular design Powerful single +12V rail 10 years warranty (Adjusted according to different regions) Model GP-UD1600PM PG5 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-7.5A Input Frequency 60-50 Hz Output Capacity 1600W Dimension 150 x 190 x 86mm Fan Type 140mm Double Ball Bearing fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-E 16 Pin x 2 : 700mm*2 PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2 PCI-E 6+2 Pin x 8 : 650mm+150mm*4 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
