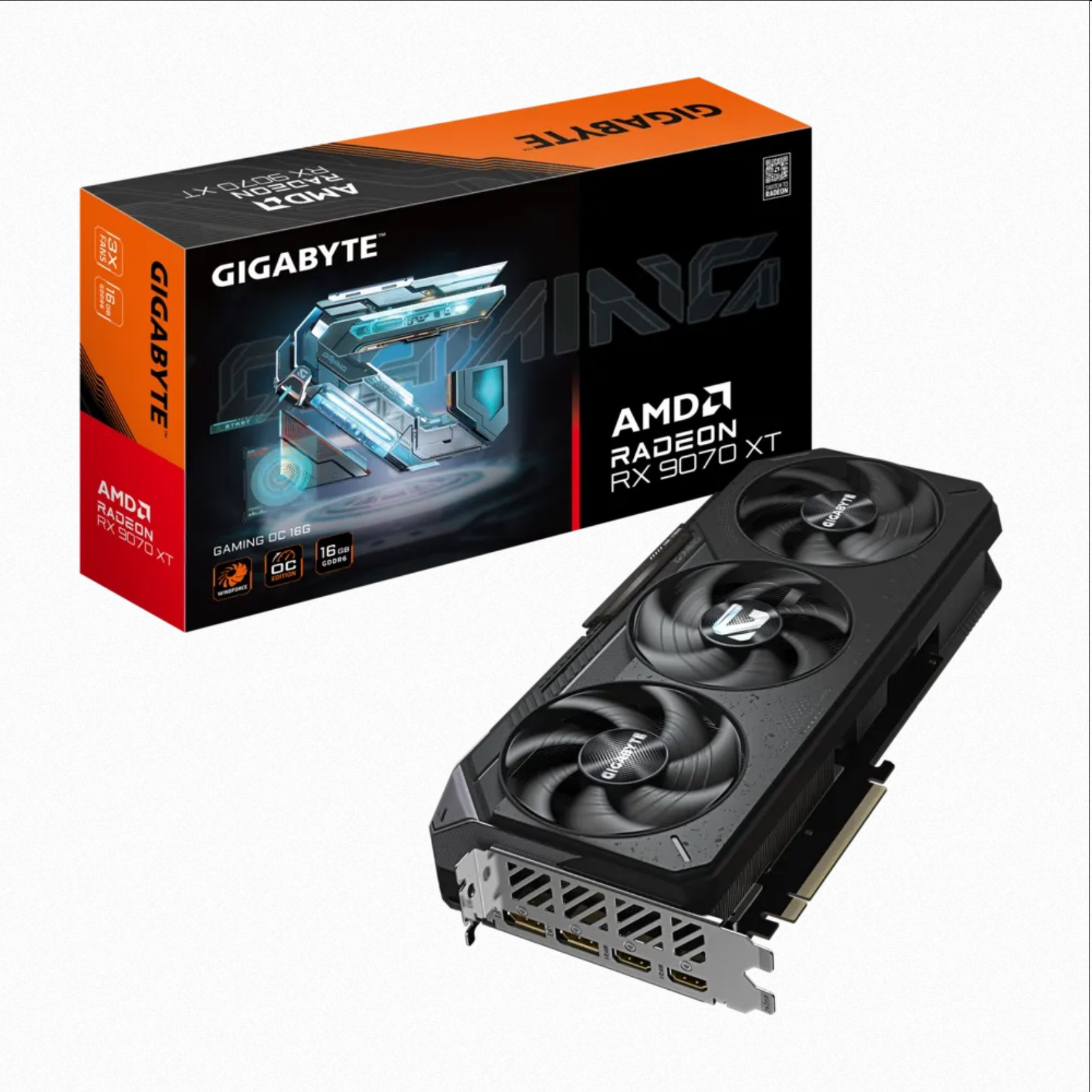

Gigabyte Radeon RX 9070 XT GAMING OC 16G

FEATURES Powered by Radeon™ RX 9070 XT Integrated with 16GB GDDR6 256bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel RGB Lighting Dual BIOS (Performance / Silent) Reinforced structure CORE CLOCK TBD Graphics Processing Radeon™ RX 9070 XT Core Clock TBD Stream Processors 4096 Memory Clock 20 Gbps Memory Size 16GB Memory Type GDDR6 Memory Bus 256 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=288 W=132 H=56 mm PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 850W Power Connectors 8 pin*3 Output DisplayPort 2.1a *2 HDMI 2.1b *2 Accessories Quick guide Note * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
