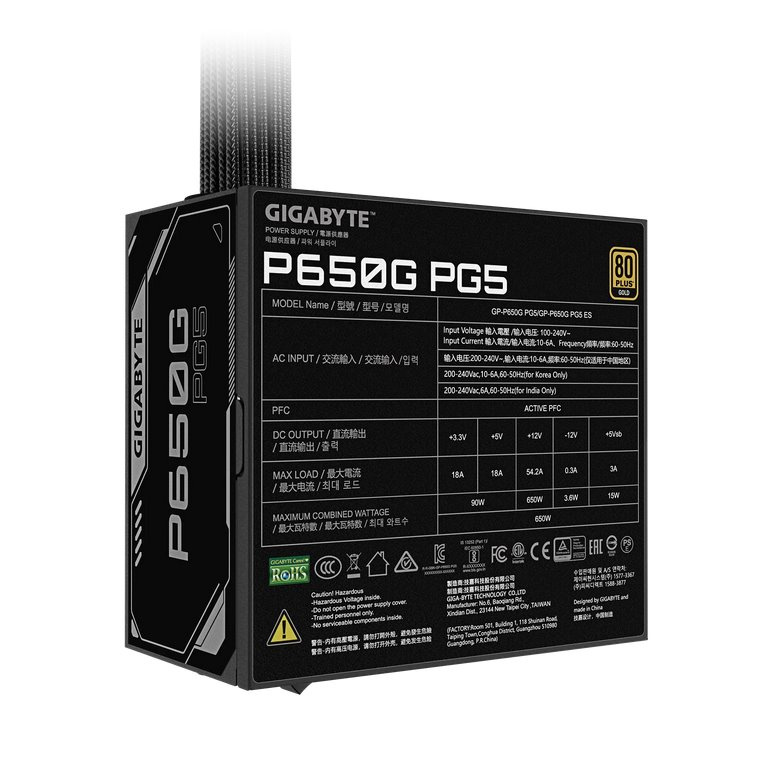

Gigabyte P650G PG5 650W 80+ Gold

FEATURES ATX 3.1 and PCIe Gen 5.1 ready 80 PLUS Gold certified Main Japanese capacitors 120mm Silent Hydraulic Bearing (HYB) Fan Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection Compact design 5 years warranty (Adjusted according to different regions) Model GP-P650G PG5? Type Intel Form Factor ATX 12V v3.1 PFC Active PFC(>0.9 typical) Input Voltage 100-240 Vac Input Current 10-6A Input Frequency 60-50 Hz Output Capacity 650W Dimensions 150 x 140 x 86 mm Fan Type 120mm HYB Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >17ms Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 1 : 600mm + 150mm*1 PCI-e 16 Pin x 1: 500mm*1 PCI-e 6+2 Pin x 2 : 500mm+150mm*1 SATA x 6 : 420mm+150mm+150mm*2 4 Pin Peripheral x 3 : 420mm+150mm+150mm*1
