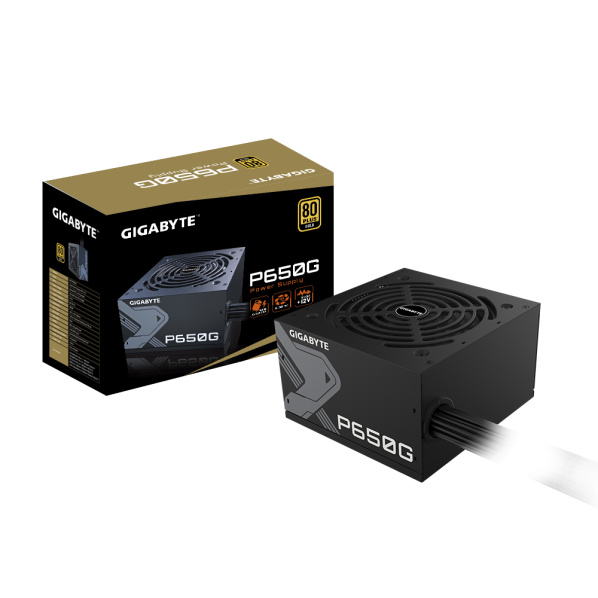

Gigabyte P650G 650W 80+ Gold

KEY FEATURE 80 PLUS Gold certified Main Japanese capacitors 120mm Silent Hydraulic Bearing (HYB) Fan Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection Compact design 5 years warranty (Adjusted according to different regions) Model GP-P650G Type Intel Form Factor ATX 12V PFC Active PFC(>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 9-4A Input Frequency 60-50 Hz Output Capacity 650W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing (HYB) Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-500ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 600mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1 PCI-e 6+2 Pin x 4 : 500mm+150mm*2 SATA x 6 : 500mm+150mm+150mm*2 4 Pin Peripheral x 3: 500mm+150mm+150mm*1
