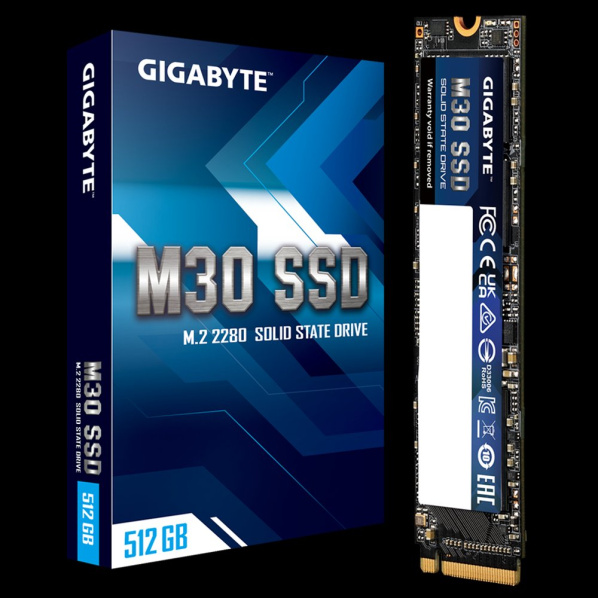

Gigabyte M30 SSD 512GB M.2 NVMe Gen3 3500/2600 MBps

Form Factor: M.2 2280 Interface: PCI-Express 3.0 x4, NVMe 1.3 Total Capacity: 512GB Sequential Read Speed : up to 3500 MB/s Sequential Write speed : up to 2600 MB/s NAND 3D TLC NAND Flash External DDR Cache DDR3L 2Gb TRIM & S.M.A.R.T supported Interface PCIe 3.0x4, NVMe 1.3 Form Factor M.2 2280 Total Capacity 512GB NAND 3D TLC NAND Flash External DDR Cache DDR3L 2Gb Sequential Read speed Up to 3500 MB/s Sequential Write speed Up to 2600 MB/s Random Read IOPS up to 350K Random Write IOPS up to 302K Dimension 22 x 2.3 x 80 mm Mean time between failure (MTBF) 2 million hours Power Consumption (Active) Average: R: 5.9W, W:5W Power Consumption (Idle) L0/L0s/L1: 900mw L1.2 < 3mw Temperature (Operating) 0°C to 70°C Temperature (Storage) -40°C to 85°C Warranty 1. Limited 5-years or 350TBW. 2. Limited warranty based on 5 years or 350TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. ) *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail. 3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0) Note • Test system configuration: configuration may vary by models, we will choose the latest platform for verification. • Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0. • Speeds based on internal testing. Actual performance may vary. • 1GB = 1 billion bytes. Actual useable capacity may vary.
