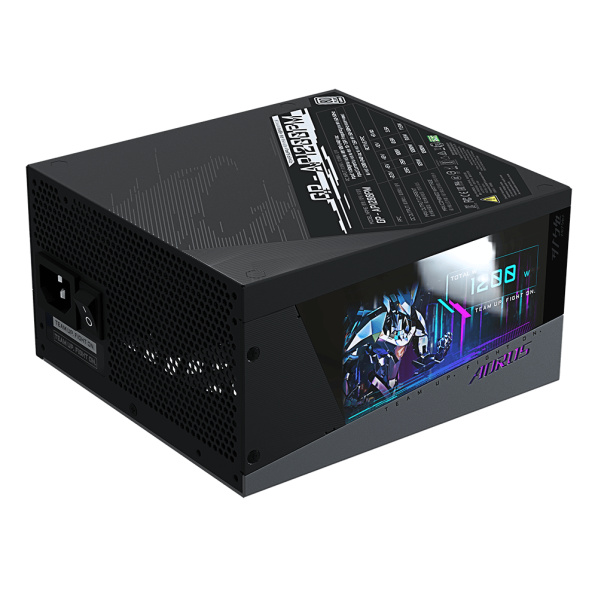

Gigabyte AORUS P1200PM 1200W 80+ PLATINUM Modular, LCD monitor

KEY FEATURE Digital LCD monitor 80 PLUS Platinum certified Fully modular design 100% Japanese capacitors Compact size design 140mm smart double ball bearing fan Fan dust removal function Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 10 years warranty (Adjusted according to different regions) Model GP-AP1200PM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-7.5A Input Frequency 60-50 Hz Output Capacity 1200W Dimension 150 x 160 x 86mm Fan Type 140mm Double ball bearing Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm*2 PCI-e 6+2 Pin x 10 : 650mm+150mm*4/650mm*2 SATA x 16 : 650mm+150mm+150mm+150mm*4 4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+120mm+120mm+150mm*2
