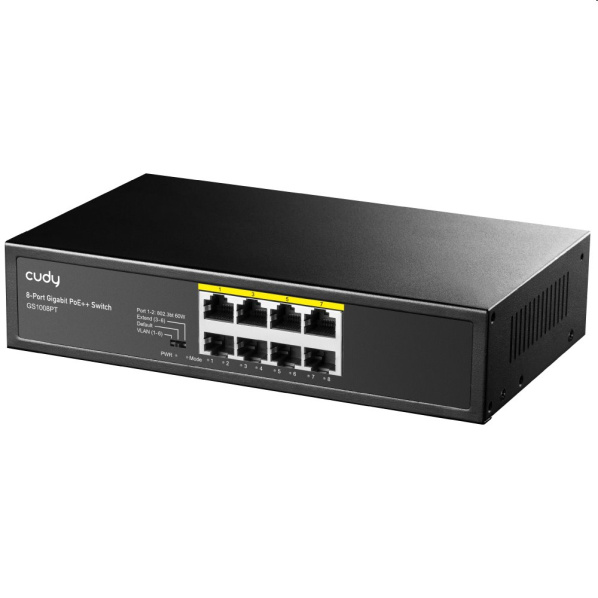

Cudy 8-Port Gigabit PoE+ Switch with 2 Gigabit Uplink Ports 120W

8-Port Gigabit PoE+ Switch, Model: GS1008PT - 120 watts PoE power supply, port #1 maximum 60 watts - 8 10/100/1000M PoE+/PoE+ ports - Extend mode support remote PoE feeding up to 250m - VLAN mode isolate each PoE Ports for security - Watchdog reactivates the abnormalPD by resuming POE power - IEEE 802.3at / IEEE 802.3af standard compliant - Plug&play, simple setup with no configuration needed Specifications Power Input: AC 100-240V, 50/60Hz Ethernet 8 *10/100/1000M PoE Port Switching Capacity 16Gbps Throughput 11.9Mpps Packet Buffer 1.5Mb MAC Address 2K Jumbo Frame 9216bytes Transfer Mode Store and forward MTBF 100000 hour Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) PoE Protocol IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3at (4 Pair 60W) Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)?EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Network Medium 10Base-T : Cat3,4,5 or above UTP(100m) 100Base-TX : Cat5 or above UTP(100m) 1000Base-TX : Cat5e or above UTP(100m) Working Environment Working Temperature:-20~50°C Storage Temperature:-40~85°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet DIP Switch VLAN:Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable Default: Normal mode, all port can communicate with each other, The port AI mode is closed. Extend:Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable Product Dimension 200mm*118mm*44mm Package Dimension 245mm*190mm*60mm N.W 0.6kg G.W 0.9kg Input Voltage :AC 100-240 V Power supply:52V2.3A
