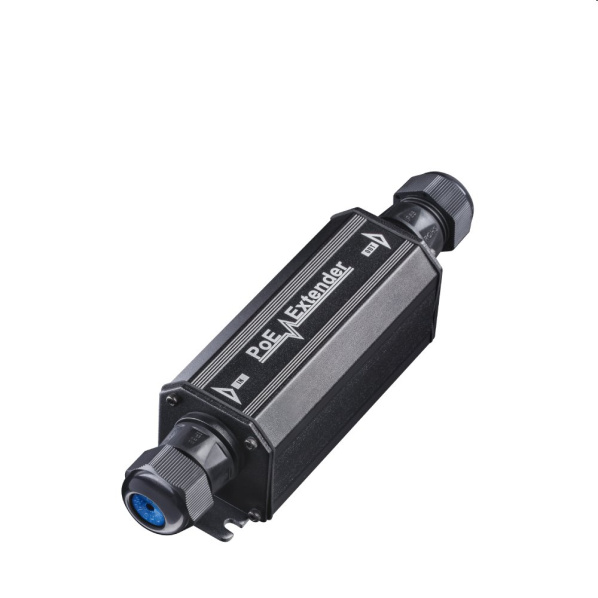

Cudy 10/100/1000Mbps Outdoor Waterproof PoE+ Extender

Power over Ethernet Extender Compatible with IEEE802.3af and IEEE802.3at Extends the range of PoE and Ethernet an additional 100 meters No additional power supply is required Automatically detects and protects PoE equipments from being damaged by incorrect installation Full-rate network throughout the whole extended distance Compact size, Wall-Mountable design Easy plug-and-play installation EMI standards complies with FCC, CE class B Specification No. of channels 1(PoE IN) into 1(PoE OUT) Pass Through Data Rates 10/100/1000 Mbps half/full duplex Power over Ethernet input Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) Power over Ethernet Output Pin Assignment and Polarity:1/2 (+), 3/6 (-) Output Power: up to 25W Indicators LED indicators are located on the RJ45 connector Power indicator: PoE enabled Network indicator: Link/Act Connectors Shielded RJ-45, EIA 568A and 568B Network cables Shielded category 5 (or higher) Dimensions 185mm x 45mm x 45mm Mounting Wall of shelf Environment Indoor or Outdoor IP67 compliance Environmental Conditions Operating Ambient Temperature: -25 to 55C Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -30 to 70C Storage Humidity: Maximum 95%, Non-condensing Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
