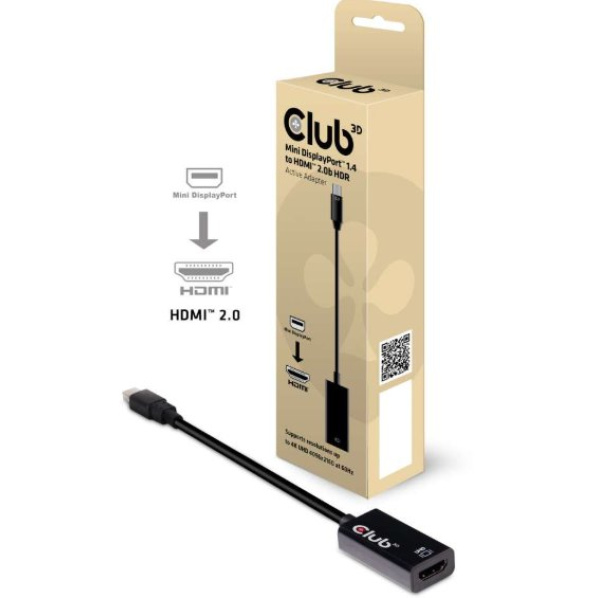

Club 3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter

Club 3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter SPECIFICATIONS Model: Product Name: Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter Product Series: Adapters Itemcode: CAC-1180 EAN code: 8719214470869 UPC code: 841615101054 Features: • DisplayPort™ 1.4 Receiver, up to 5.4Gbps link Rate, HBR2/HBR/RBR • Video Stream Handling - Up to 600Mhz dual pixel path and 16bpc - RGB/YCbCr 4:4:4/4:2:2/4:2:0 pixel format - Horizontal expansion of Vesa CVT to CEA Timings (as per DP™ 1.4 spec) • DisplayPort™ to HDMI™ Stereoscopic 3D Transport - Frame Sequential to Stacked Top-Bottom Conversion - Pass-trough of ther 3D Formats • Audio Stream Handling - LPCM and compressed Audio encoding formats - Max audio sample rate of 192 Khz x 8 Channel or 768 KHz x 2 Channel • HDCP Support - HDCP 1.3 to HDCP 1.4 repeater function - HDCP 2.2 to HDCP 1.4 and 2.2 repeater Function • HDMI™ transmitter - Compliant to HDMI™ specifications version 2.0b - 600MHz max TMDS character clock - High Daynamic Range (HDR) support both Static- and Dynamic HDR. - CEC Support - snooping, tunneling • Max Video resolution and color depth on HDMI™ output - 4K 60Hz RGB/YCbCr 4:4:4, 8bpc - 4K 60Hz YCbCr 4:2:2, up to 12bpc - 4K 60Hz YCbCr 4:2:0, up to 16bpc - 4K 30Hz RGB/YCbCr 4:4:4, up to 16bpc Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and / or HDMI™ 2.0 a or b. Input: Mini DisplayPort™ 1.4 male Output: HDMI™ 2.0b female OS Support: Windows 10, Apple OS X Other info: • Boxsize: 182 x 60 x 35mm. • Cable: 184 x 20 x 11 mm. • Weight: 30 gr. • Meets ROHS, FCC, and CE EMI requirements • Made in China In the box: Club 3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b HDR Active Adapter
