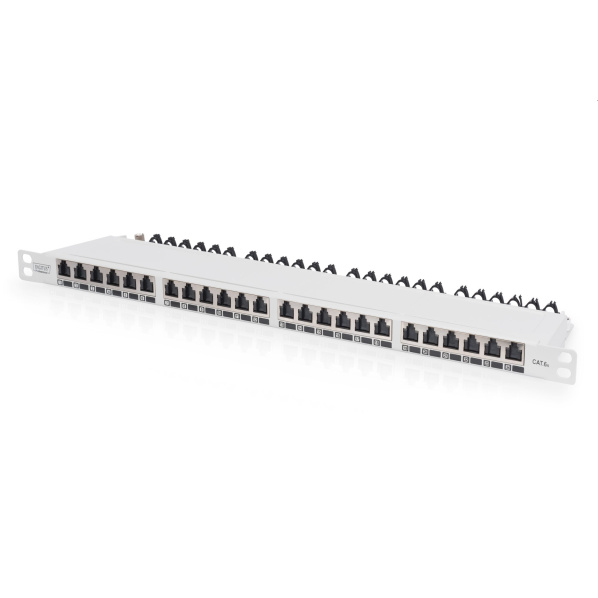

CAT 6A EA patch panel, shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035

CAT 6A EA patch panel, shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035 Save a lot of space (only 0.5U) - With shutters for dust protection - Best performance and link quality for your network DESCRIPTION The DIGITUS® 24-port 0.5U Patch Panel offers a high density. As the panel is only 0.5U in height, it allows to present 48 ports on 1U (2 panels with 24 ports each) which can be installed. TECHNICAL DETAILS Transmission properties: Category 6A, Class EA Area of application: Up to 500 MHz, 10GBase-T Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+ General properties: Suitable for 483 mm (19") cabinet mounting RJ45 female, 8P8C Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B Cable fixing with smart cable ties Central ground connection 360° shield coverage Integrated dust cover Mechanical properties: Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110 RJ45 female material: ABS UL 94V-0 RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact RJ45 shielding: Tinned bronze LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze Ground wire: Not included Conductor plate: FR4, UL 94V-0 Physical properties: Insertion force: 30N max. (IEC 60603-7-5) Retention strength: 7.7 kg between jack and plug Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C) Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5 Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5 IDC wire size: 22 – 26 AWG solid and stranded conductor Insulation resistance: > 500 MOhm Contact resistance: < 20 MilliOhm Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground) Colour: Grey RAL7035 Color: light grey, RAL 7035 Ports: 24 Units: 0,5 Category: CAT 6A
