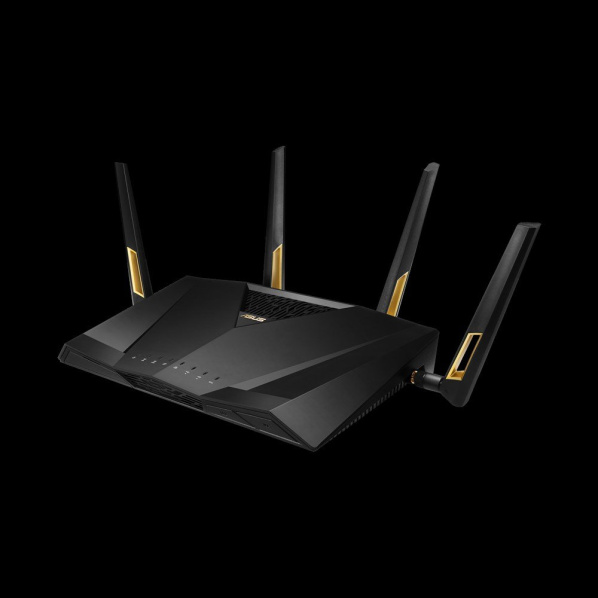

Popis ASUS RT-AX58U WiFi 6 Dual-Band Wireless Gigabit Router, AiMESH
RT-AX58U Network Standard IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 Product Segment AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps WiFi Data Rate 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps Antenna External antenna x 4 Transmit / Receive 2.4GHz 2x2 5GHz 2x2 Processor V2: 1.7 GHz quad-core processor V1: 1.5 GHz tri-core processor Memory 256 MB Flash?512 MB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access)?Beamforming: standard-based and universal?1024-QAM high data rate?20/40/80/160 MHz bandwidth Operating Frequency 2.4G Hz / 5 GHz Operating Mode Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode I/O Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 3.2 Gen 1 x 1 Buttons WPS Button, Reset Button, Power Switch LED Indicator Power x 1?2.4G x 1?5G x 1?LAN x 4?WAN x 1 Power Supply AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.75 A current DC Output : 12 V with max. 2 A current Package Content RT-AX58U WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card Product Weight (g) 523 g Product Dimensions 224 x 129 x 160 mm (with antenna) 224 x 129 x 50 mm (without antenna) AiMesh AiMesh • Primary AiMesh Router • AiMesh Node Parental Control "Allow you to block access to unwanted websites and apps." Customized Internet Schedule Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network." • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit Security AiProtection WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS SSH Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 AiProtection • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Server IPSec VPN Server Open VPN VPN Server PPTP Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History WAN Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay LAN DHCP Server IGMP Snooping IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) Wireless UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming USB application File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges Administration Configuration Backup and Restore Diagnosis tools Feedback System System Log
