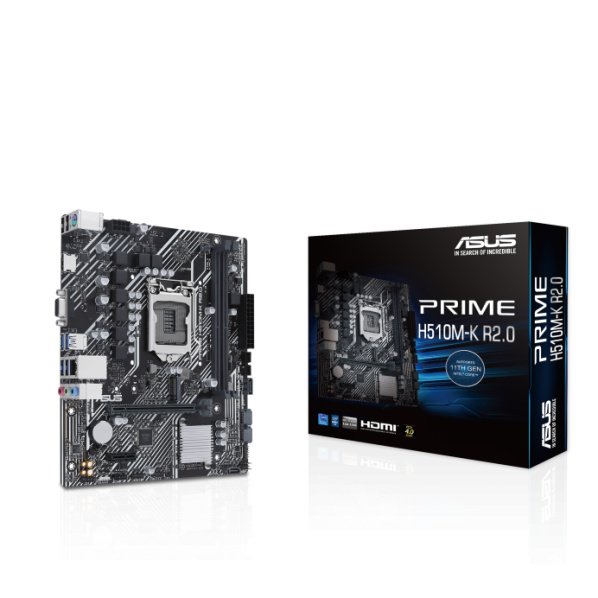

ASUS PRIME H510M-K R2.0, Intel H470, LGA1200, 2xDDR4, mATX

Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1 Comprehensive cooling: PCH heatsink and Fan Xpert 5X Protection III: Multiple hardware safeguards for all-round protection CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® H470 Chipset Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. Graphics 1 x VGA port 1 x HDMI™ port** * Graphics specifications may vary between CPU types. ** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Expansion Slots Intel® 11th & 10th Gen Processors* 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset 1 x PCIe 3.0 x1 slot Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Ethernet 1 x Realtek 1Gb Ethernet USB Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header Software Features ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Anchor Documentation 1 x User guide Operating System Windows® 10 64-bit Form Factor micro-ATX Form Factor 8.9 inch x 8.0 inch ( 22.6 cm x 20.3 cm )
