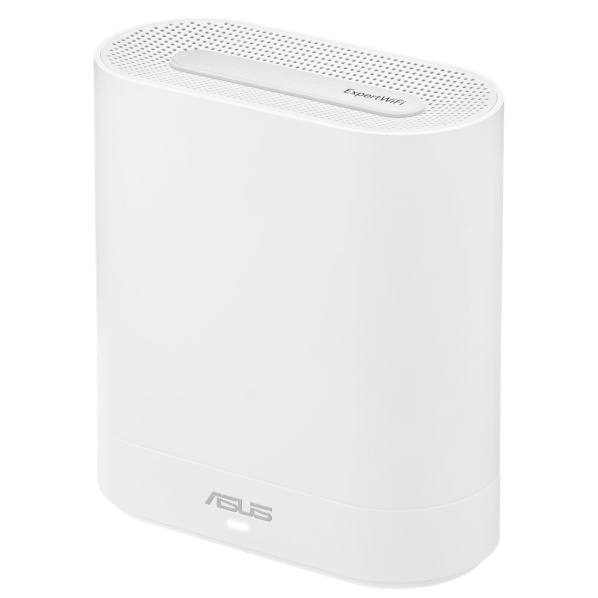

ASUS ExpertWiFi EBM68 Business Mesh System, WiFi 6 AX7800, (1-PK)

ASUS ExpertWiFi EBM68 Business Mesh System Your Business WiFi Expert Within Reach The ASUS ExpertWiFi EBM68 provides a fast, secure, and scalable network with rich features tailored for small-to-midsized businesses. Whether used independently or extended with other ASUS ExpertWiFi solutions, the ExpertWiFi EBM68 can easily adapt to your business network needs. ASUS ExpertWiFi EBM68 Model Name EBM68 Network Standard IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 Product Segment AX7800 ultimate AX performance : 574+2402+4804Mbps Data Rate 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps Antenna Internal antenna x 6 Transmit / Receive 2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4 Processor 1.7 GHz quad-core processor Memory 256 MB Flash 1 GB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. Operating Frequency 2.4 GHz 5 GHz-1 5 GHz-2 Operating Mode Wireless Router Mode AiMesh Node Mode Access Point Mode I/O Ports RJ45 for 2.5G BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1 Buttons WPS Button Reset Button Power Switch LED Indicator Power x 1 Power Supply AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 3 A current Mounting Wall Mount Package Content ExpertWiFi EBM68 RJ-45 cable Power adapter Warranty card Quick start guide Wall-mount kit Product Weight (g) 808g Product Dimentions 167x77x186 mm Remark Content and color may vary in different regions and packages. AiMesh AiMesh • Primary AiMesh Router • AiMesh Node Device Access Control "Allow you to block access to unwanted websites and apps." ------------------------------------------------------ Web & Apps Filters Time Scheduling Reward Safe Browsing Customized Internet Schedule • Maximum Device Access Control Profile :12 • Maximum Device Access Control Content Filter Rule :12 Dashboard Dashboard Self-Defined Network "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." ------------------------------------------------------------------------ Self-Defined Network Type • Employee • Guest Portal • Guest Network • Scheduled Network • IoT Network • VPN Network • Maximum Self-Defined Network Rule :16 VLAN Captive Portal for Free WiFi VPN WiFi WiFi Scheduling: One Time Access WiFi Scheduling: Weekly Schedule WiFi share: QR code, PDF file Bandwidth Limiter AP isolate DNS Server Connection Security AiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64 AiProtection AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking VPN VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark Traffic Control Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Website History WAN Internet Connection Type • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS NAT Passthrough • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through LAN DHCP Server IGMP Snooping IPTV LAN Link Aggregation VLAN Wireless UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler USB application 4G / 5G Auto Mobile Tethering Media Server Samba Server FTP Server Shared Folder Privileges User Interface WEB: ASUSWRT APP: ASUS ExpertWiFi APP Management Multiple Site Management Administration Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update
